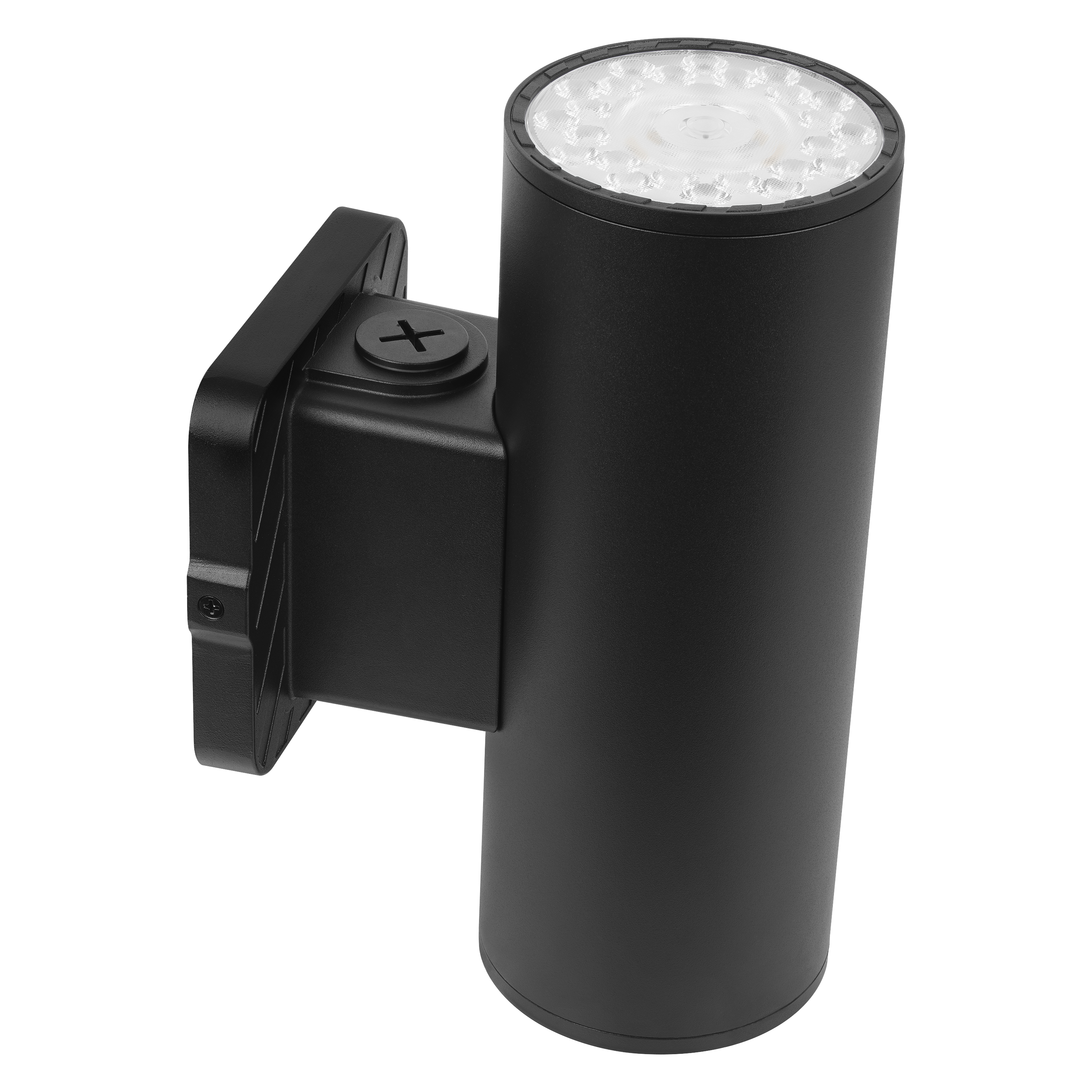

CYLINDER OPTI-SELECT S020 UNH D 8 SC2 R4 BL P white, diagonal, LEDVANCE logo

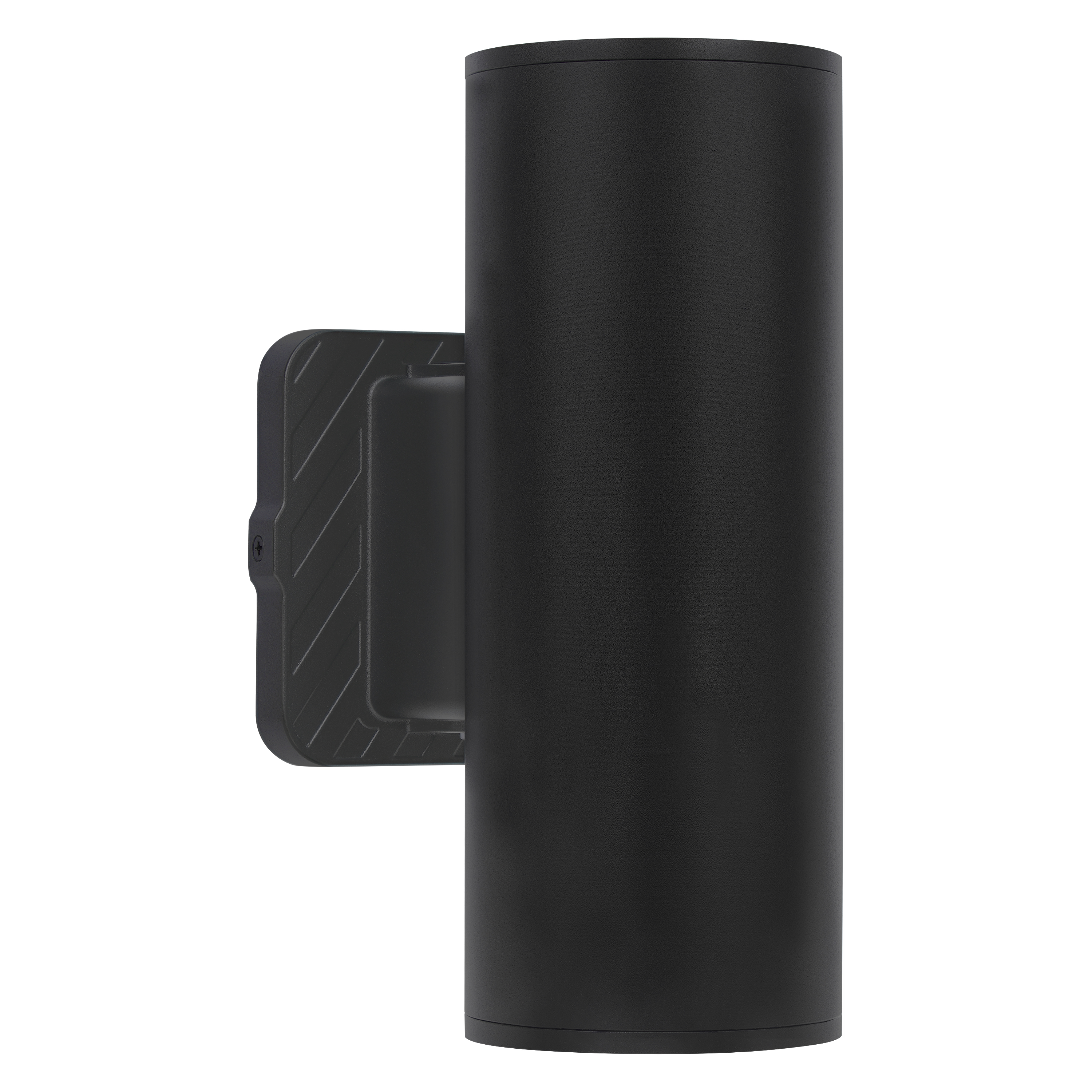

CYLINDER OPTI-SELECT S020 UNH D 8 SC2 R4 BL P white, upright

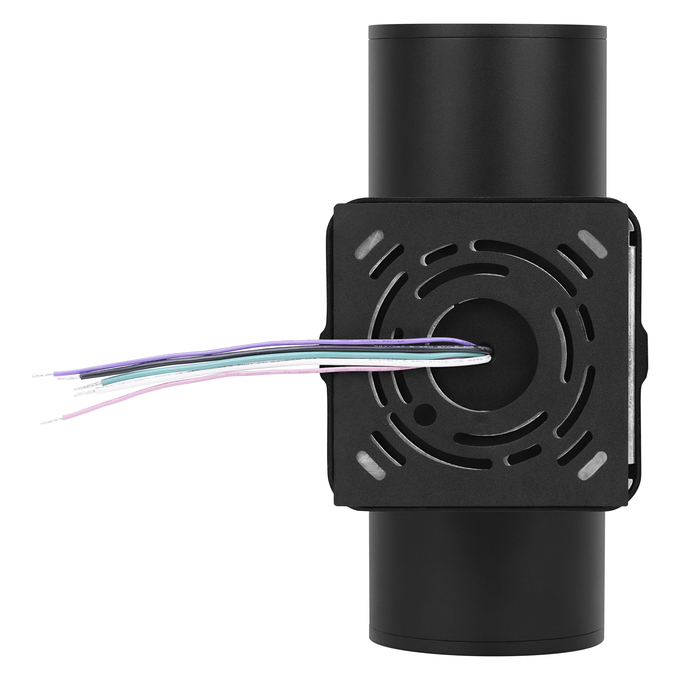

CYLINDER OPTI-SELECT S020 UNH D 8 SC2 R4 BL P white, backside

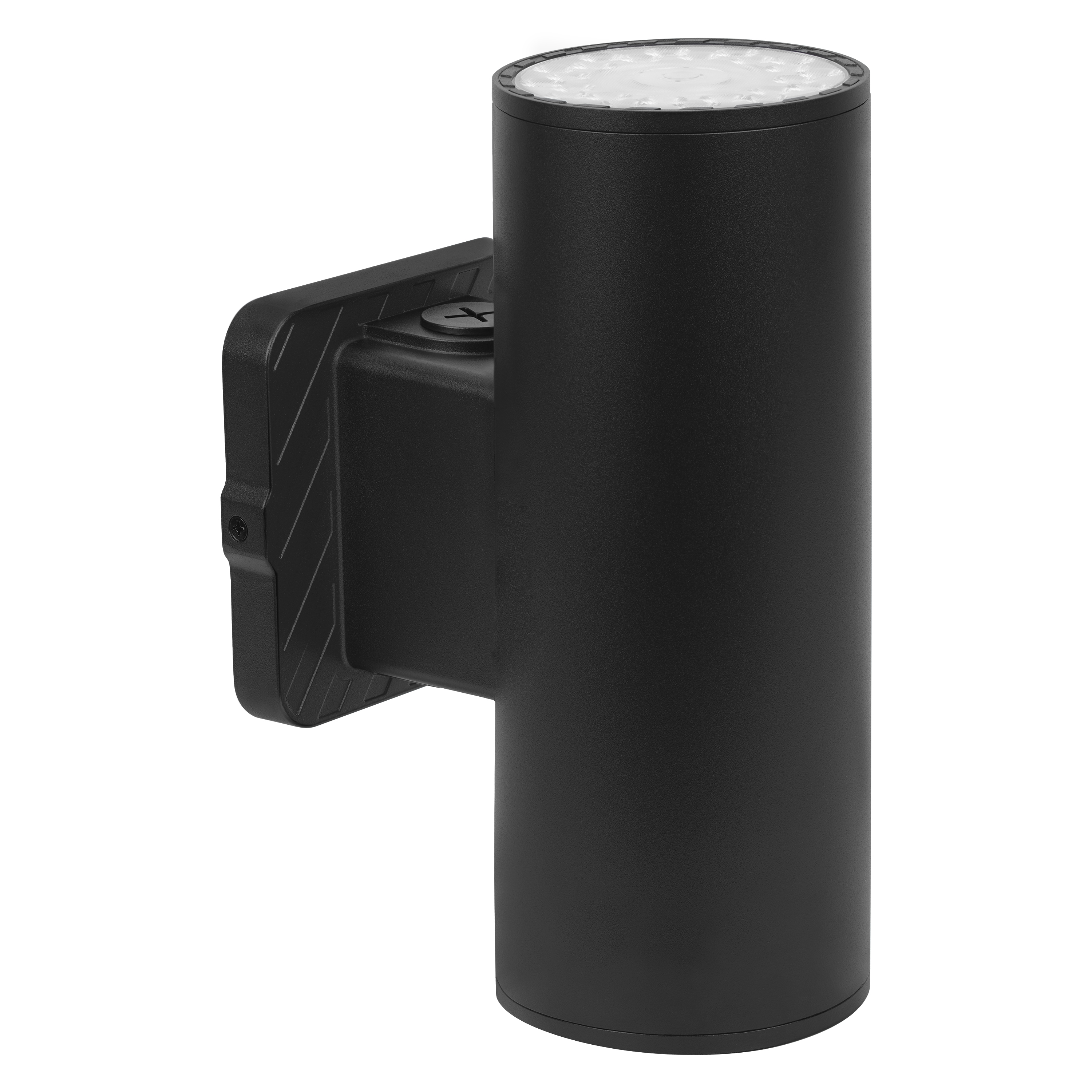

CYLINDER OPTI-SELECT S020 UNH D 8 SC2 R4 BL P white, diagonal, alternat

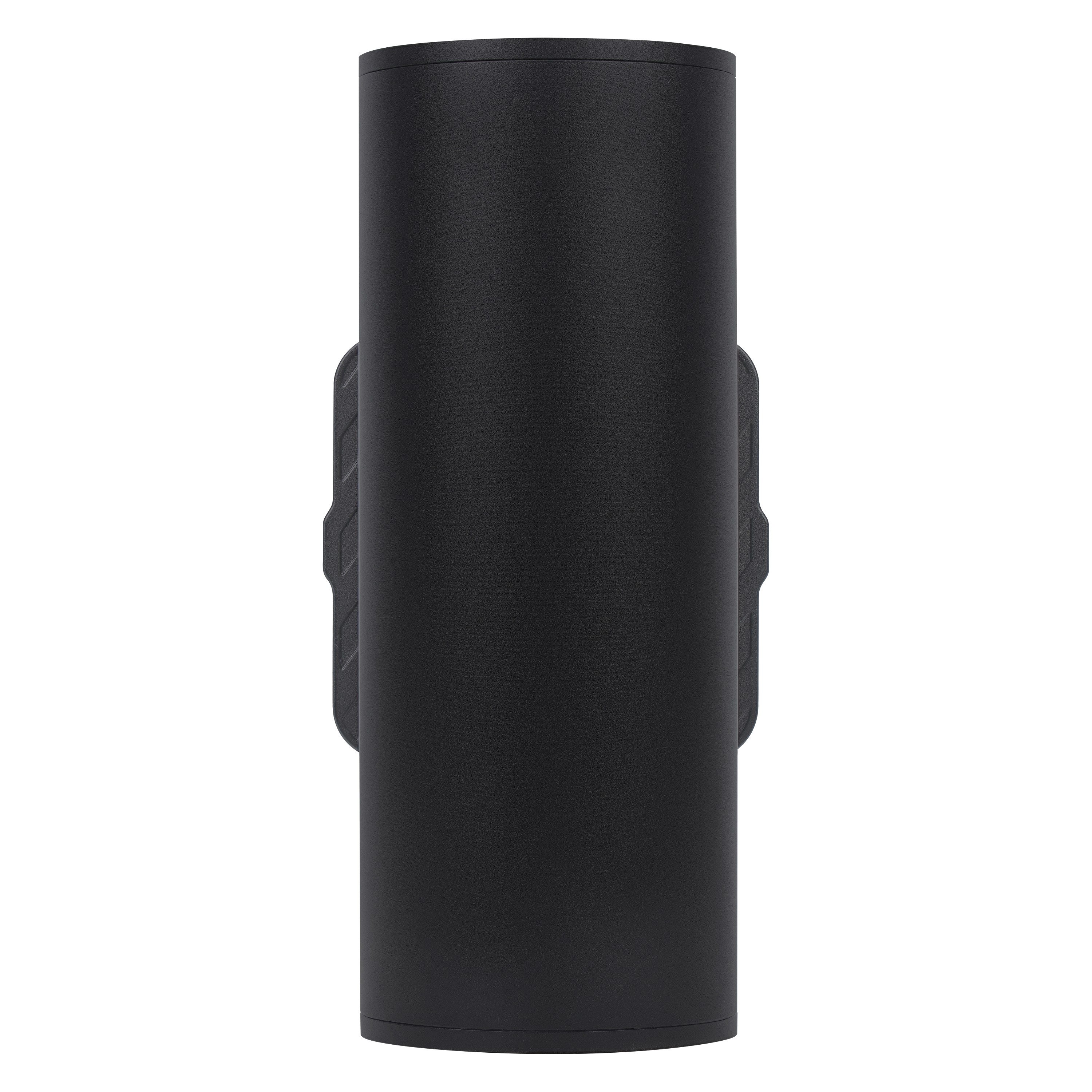

CYLINDER OPTI-SELECT S020 UNH D 8 SC2 R4 BL P white, upright, alternat

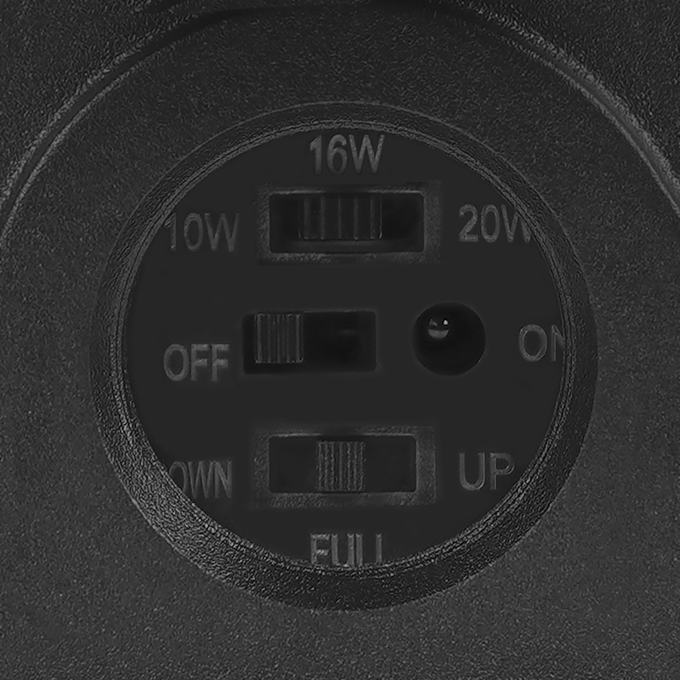

CYLINDER OPTI-SELECT S020 UNH D 8 SC2 R4 BL P white, visualized function

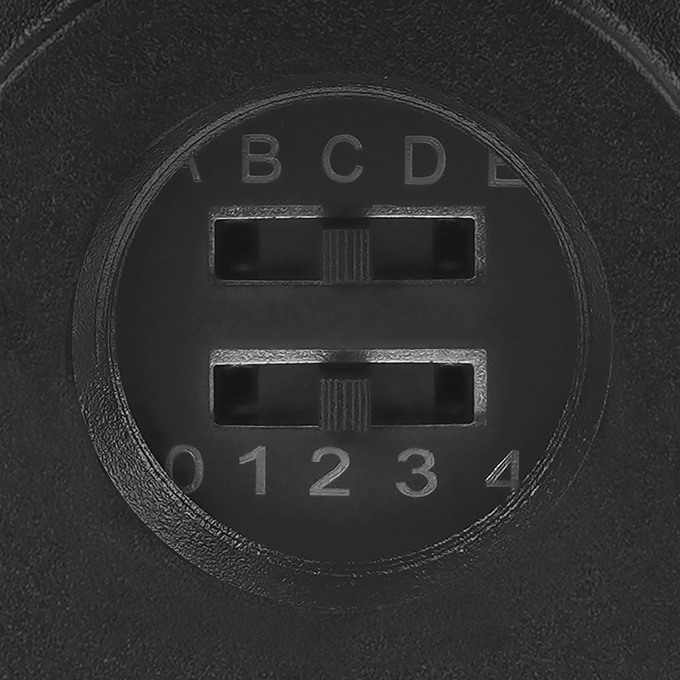

CYLINDER OPTI-SELECT S020 UNH D 8 SC2 R4 BL P white, visualized function
CYLINDER OPTI-SELECT

CYLINDER OPTI-SELECT S020 UNH D 8 SC2 R4 BL P

NAED: 66286
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Areas of application
  • Building facades
  • Entryways
  • Wall washing
Product features
  • OPTI-SELECT: narrow, medium and wide beam angles, adjustable via switch
  • Up, down, or up + down light modes
  • Up to 125 LPW
  • Selectable CCT: 3000/4000/5000K
  • CRI > 80
  • Selectable wattage and lumen outputs
  • Integrated photocell that can be disabled in the field
Installation Guide
OPTISELECT CYLINDER INSTALL MANUAL
PDF (3.32 MB)
Product Family Spec Sheet
LEDLUM224 LEDVANCE LUMINAIRES OPTI-SELECT CYLINDER
PDF (951.48 KB)
Other documents / promotion
Luminaire LED Fixture and Pole Limited Warranty LEDLUM001
PDF (139.12 KB)
Other documents / promotion
LEDVANCE Product Launch Flyer November 2024
PDF (1.61 MB)
Other documents / promotion
LEDVANCE Performance Class OPTI-SELECT CYLINDER Sales Flyer
PDF (1.17 MB)
Other documents / promotion
LEDVANCE US and Canada Warranty Terms and Conditions
PDF (147.57 KB)
Electrical data
Nominal Wattage 20.00/16.00/10.00 W
Nominal voltage 120.00…347.00 V
Power factor ≥0.90
Total Harmonic Distortion < 20 %
Photometrical data
Lumens 2200/1760/1100 lm
Efficacy 110 lm/W
Color Temperature/CCT 3000/4000/5000 K
Color Rendering Index (CRI) 80
Luminaire Type Surface
Dimensions & Weight
Diameter 4 in
Product weight 4.52 lb
Materials & Colors
Luminaire Finish Black
Housing color Black
Housing Aluminum
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -40…+50 °C
Maximum Operating Temperature 122 °F
Minimum Operating Temperature -40 °F
Dimming Yes
Type of Dimming 0-10V
Mounting Surface
Indoor/Outdoor Outdoor
Replaceable light source No
Lifespan
Average Rated Life (hr) 100000
Certificates & Standards
Certification Listing RoHS; FCC; cULus
Additional product data
Ordering Abbreviation CYLINDPS020UNHD8SC2R4BLP
Abbrev. With Packaging Info. CYLINDPS020UNHD8SC2R4BLP 6/CS 1/SKU
SKU UPC 0046135662867
Family Brand Name PERFORMANCE CLASS™
General Description WALL CYLINDER OPTISELECT, SELECTABLE WATTAGE 10/16/20W, SELECTABLE CCT 3000/4000/5000K, 120-347V, 0-10V DIMMABLE, 4" DIAMETER, UP AND DOWN, BLACK
Warranty 5 years
Logistical data
SKU Qty 1
Case Qty 6
Case Length (in) 17.441
Case Width (in) 15.354
Case Depth (in) 12.598
Case Cube (ft) 1.952
Case Weight (lbs) 32.300
SKU UPC 0046135662867
Pallet Qty 108
SKU's/Case 6
SKU's/Pallet 108
Cases/Pallet 18
