HIGH BAY HAZARDOUS LOCATION
HAZ HB 150 UNV D 8 50 GR WM
NAED: 66959
Our warranty conditions
PRODUCT DETAILS
Areas of application
- Power plants
- Heavy industrial sites
- Loading docks
- Chemical processing facilities
Product features
- Explosion-proof construction: prevents ignition of gases, vapors, or dust
- Certified for hazardous areas, meeting UL 844 for explosive environments
- Corrosion-resistant, copper-free aluminum housing for harsh industrial sites
- Multiple mounting options: easily adapts to various installations and upgrades
- Impact-resistant lenses withstand shocks, vibrations, and tough environments
- Selectable wattage and lumen outputs
- 5000K
- IP66
- NEMA 4X
Installation Guide
HAZARDOUS HIGH BAY
HAZARDOUS HIGH BAY
Product Family Spec Sheet
HIGH BAY HAZARDOUS LOCATION SPEC SHEET
HIGH BAY HAZARDOUS LOCATION SPEC SHEET
Other documents / promotion
LEDVANCE Product Launch Flyer August 2025
LEDVANCE Product Launch Flyer August 2025
Other documents / promotion
LEDVANCE US and Canada Warranty Terms and Conditions
LEDVANCE US and Canada Warranty Terms and Conditions
Electrical data
| Nominal Wattage | 150.00 W |
| Nominal voltage | 120.00…277.00 V |
| Power factor | ≥ 0.90 |
| Total Harmonic Distortion | < 20 % |
Photometrical data
| Lumens | 22500 lm |
| Efficacy | 150 lm/W |
| Color Temperature/CCT | 5000 K |
| Color Rendering Index (CRI) | 80 |
| Luminaire Type | High bay |
Dimensions & Weight
| Length | 15.94 in |
| Height | 7.68 in |
| Width | 14.57 in |
| Product weight | 19.36 lb |
Materials & Colors
| Luminaire Finish | Gray |
| Housing color | Gray |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -40…55 °C |
| Maximum Operating Temperature | 131 °F |
| Minimum Operating Temperature | -40 °F |
| Dimming | Yes |
| Type of Dimming | 0-10V |
| Mounting | Surface |
| Replaceable light source | No |
| Primary Lamp Type | SMD |
Lifespan
| Average Rated Life (hr) | 100000 |
Certificates & Standards
| Certification Listing | RoHS; FCC; cULus |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Ordering Abbreviation | HAZHB/P150UNVD850/GR/WM |
| Abbrev. With Packaging Info. | HAZHBP150UNVD850GRWM 1/CS 1/SKU |
| Family Brand Name | PERFORMANCE CLASS™ |
| General Description | HAZARDOUS HIGHBAY, PERFORMANCE CLASS, 150W, 120-277V, 0-10V DIMMING, 80 CRI, 5000K, GRAY, WALL MOUNT |
| Warranty | 5 years |
Logistical data
| Case Qty | 1 |
| Case Length (in) | 17.717 |
| Case Width (in) | 17.717 |
| Case Depth (in) | 11.811 |
| Case Cube (ft) | 2.145 |
| Case Weight (lbs) | 20.463 |
| Pallet Qty | 16 |
| Cases/Pallet | 16 |
| Product image | Product name | UPC |
|---|---|---|
|
HAZ HB BRACKET SM | OS61199 |
|
HAZ HB BRACKET LRG | OS61200 |
|
|
HAZ HB PIPE STRAIGHT | OS61202 |
|
|
HAZ HB JBOX GRAY | OS61203 |
|
HAZ HB ADAPTER APP GRAY | OS60119 |

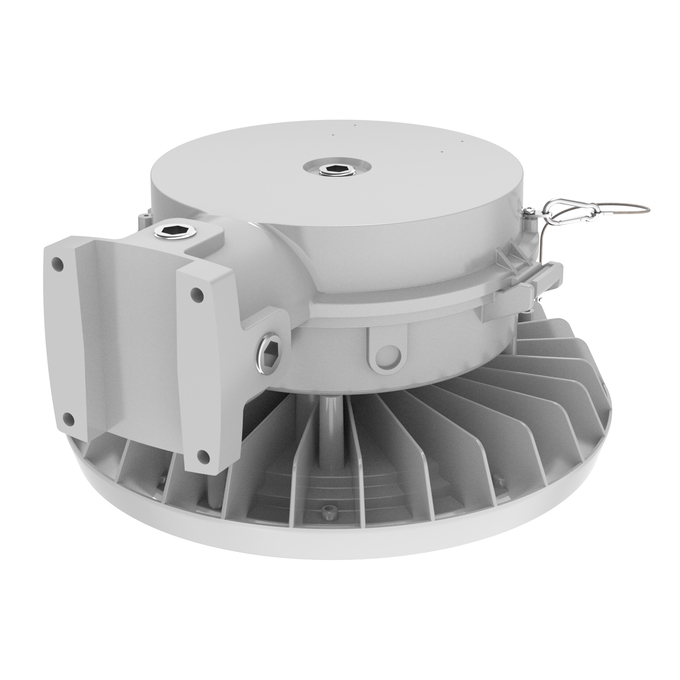

Product image: white background, diagonal with LEDVANCE logo

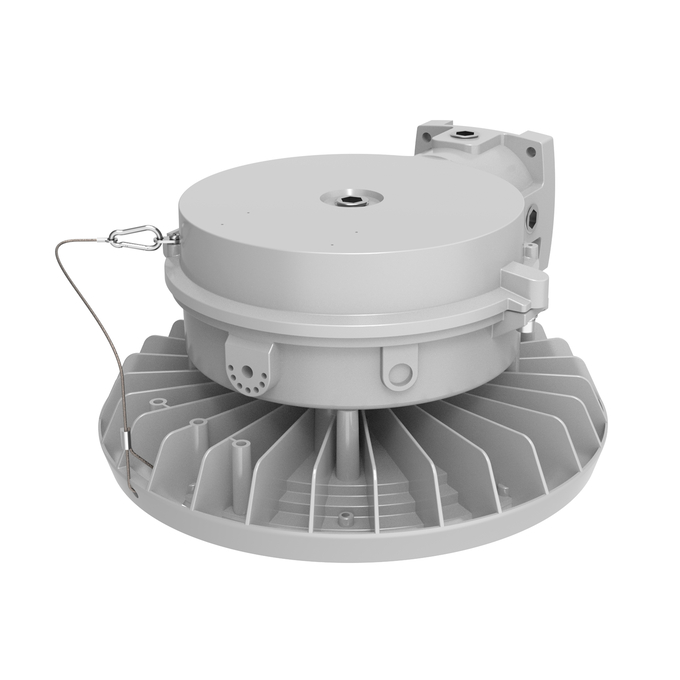

HIGH BAY HAZARDOUS LOCATION WALL MOUNT
HIGH BAY HAZARDOUS LOCATION WALL MOUNT

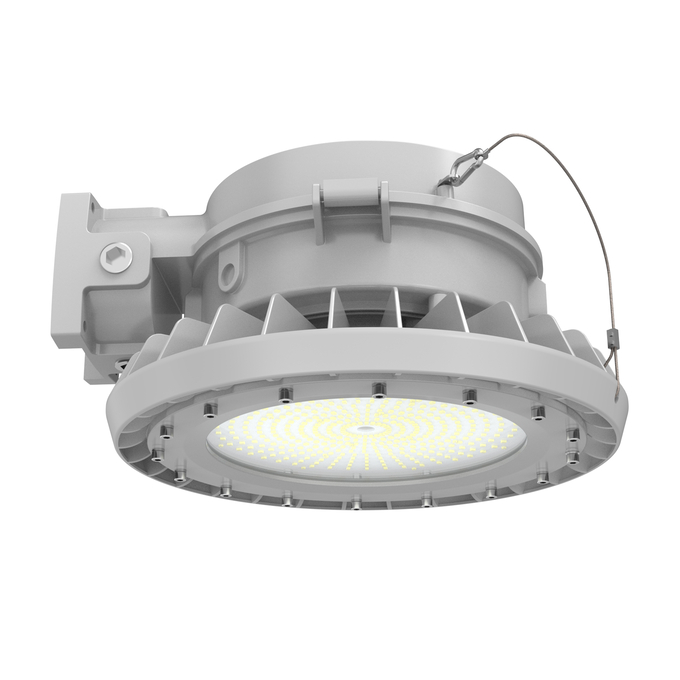

Product image: white background, diagonal
HIGH BAY HAZARDOUS LOCATION WALL MOUNT
HIGH BAY HAZARDOUS LOCATION WALL MOUNT

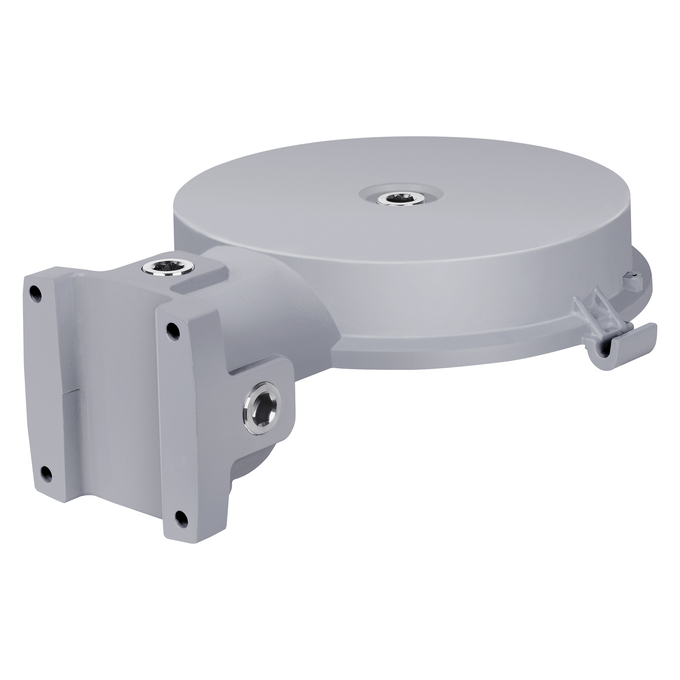

Product image: white background, with accessory, alternative image
HAZARDOUS HIGH BAY WALL MOUNT ACCESSORY
HAZARDOUS HIGH BAY WALL MOUNT ACCESSORY
