HIGH BAY HAZARDOUS LOCATION
HAZ HB 080 HUV D 8 50 GR
NAED: 66818
Our warranty conditions
PRODUCT DETAILS
Areas of application
- Power plants
- Heavy industrial sites
- Loading docks
- Chemical processing facilities
Product features
- Explosion-proof construction: prevents ignition of gases, vapors, or dust
- Certified for hazardous areas, meeting UL 844 for explosive environments
- Corrosion-resistant, copper-free aluminum housing for harsh industrial sites
- Multiple mounting options: easily adapts to various installations and upgrades
- Impact-resistant lenses withstand shocks, vibrations, and tough environments
- Selectable wattage and lumen outputs
- 5000K
- IP66
- NEMA 4X
Installation Guide
HAZARDOUS HIGH BAY
HAZARDOUS HIGH BAY
Installation Guide
Hazardous Location High Bay Adapter
Hazardous Location High Bay Adapter
Product Family Spec Sheet
HIGH BAY HAZARDOUS LOCATION SPEC SHEET
HIGH BAY HAZARDOUS LOCATION SPEC SHEET
Other documents / promotion
Luminaire LED Fixture and Pole Limited Warranty LEDLUM001
Luminaire LED Fixture and Pole Limited Warranty LEDLUM001
Other documents / promotion
LEDVANCE Product Launch Flyer August 2025
LEDVANCE Product Launch Flyer August 2025
Electrical data
| Nominal Wattage | 80.00 W |
| Nominal voltage | 277.00…480.00 V |
| Power factor | ≥ 0.90 |
| Total Harmonic Distortion | < 20 % |
Photometrical data
| Lumens | 12000 lm |
| Efficacy | 150 lm/W |
| Color Temperature/CCT | 5000 K |
| Color Rendering Index (CRI) | 80 |
| Luminaire Type | High bay |
Dimensions & Weight
| Diameter | 10.63 in |
| Height | 6.81 in |
| Product weight | 12.97 lb |
Materials & Colors
| Luminaire Finish | Gray |
| Housing color | Gray |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -40…55 °C |
| Maximum Operating Temperature | 131 °F |
| Minimum Operating Temperature | -40 °F |
| Dimming | Yes |
| Type of Dimming | 0-10V |
| Mounting | Suspended |
| Replaceable light source | No |
| Primary Lamp Type | SMD |
Lifespan
| Average Rated Life (hr) | 100000 |
Certificates & Standards
| Certification Listing | RoHS; FCC; cULus |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Ordering Abbreviation | HAZHBP/080HUVD850/GR |
| Abbrev. With Packaging Info. | HAZHBP080HUVD850GR 1/CS 1/SKU |
| Family Brand Name | PERFORMANCE CLASS™ |
| General Description | HAZARDOUS HIGHBAY, PERFORMANCE CLASS, 80W, 277-480V, 0-10V DIMMING, 80 CRI, 5000K, GRAY |
| Warranty | 5 years |
Logistical data
| Case Qty | 1 |
| Case Length (in) | 17.717 |
| Case Width (in) | 17.717 |
| Case Depth (in) | 11.024 |
| Case Cube (ft) | 2.003 |
| Case Weight (lbs) | 14.052 |
| Pallet Qty | 16 |
| Cases/Pallet | 16 |
| Product image | Product name | UPC |
|---|---|---|
|
HAZ HB BRACKET SM | OS61199 |
|
HAZ HB BRACKET LRG | OS61200 |
|
|
HAZ HB PIPE STRAIGHT | OS61202 |
|
|
HAZ HB JBOX GRAY | OS61203 |
|
HAZ HB ADAPTER APP GRAY | OS60119 |

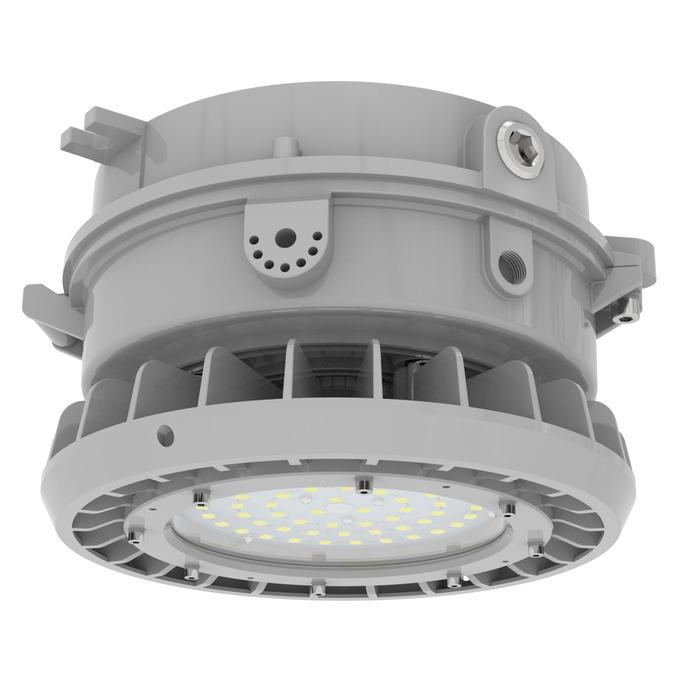

Product image: white background, horizontal
