FLOODLIGHT HAZARDOUS LOCATION
HAZ FLOOD 300 UNV D 8 50 GR
NAED: 66826
Our warranty conditions
PRODUCT DETAILS
Areas of application
- Power plants
- Heavy industrial sites
- Loading docks
- Chemical processing facilities
Product features
- Explosion-proof construction: prevents ignition of gases, vapors, or dust
- Certified for Hazardous Areas: UL844 and CSA 22.2 No. 137 compliant
- Copper-free aluminum housing resists corrosion and cools in harsh conditions
- Tempered glass lens for superior heat resistance
- Selectable wattage and lumen outputs
- 5000K
- Tool-free wiring: faster installation and maintenance, no need for special tools
- IP66 | IK08
Equipment / Accessories
- Yoke mount
Installation Guide
INSTALL MANUAL HAZARDOUS LOCATION FLOODLIGHT
INSTALL MANUAL HAZARDOUS LOCATION FLOODLIGHT
Product Family Spec Sheet
LEDVANCE FLOODLIGHT HAZARDOUS LOCATION SPEC SHEET
LEDVANCE FLOODLIGHT HAZARDOUS LOCATION SPEC SHEET
Other documents / promotion
Luminaire LED Fixture and Pole Limited Warranty LEDLUM001
Luminaire LED Fixture and Pole Limited Warranty LEDLUM001
Other documents / promotion
LEDVANCE Product Launch Flyer August 2025
LEDVANCE Product Launch Flyer August 2025
Other documents / promotion
LEDVANCE US and Canada Warranty Terms and Conditions
LEDVANCE US and Canada Warranty Terms and Conditions
Electrical data
| Nominal Wattage | 300.00 W |
| Nominal voltage | 120.00…277.00 V |
| Power factor | ≥0.90 |
| Total Harmonic Distortion | < 20 % |
Photometrical data
| Lumens | 45000 lm |
| Efficacy | 150 lm/W |
| Color Temperature/CCT | 5000 K |
| Color Rendering Index (CRI) | 80 |
| Luminaire Type | Flood light |
Dimensions & Weight
| Length | 16.54 in |
| Height | 10 in |
| Width | 11.81 in |
| Product weight | 35.6 lb |
Materials & Colors
| Luminaire Finish | Gray |
| Housing color | Gray |
| Housing | Aluminum |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -40…+50 °C |
| Maximum Operating Temperature | 122 °F |
| Minimum Operating Temperature | -40 °F |
| Dimming | Yes |
| Type of Dimming | 0-10V |
| Mounting | Surface |
| Indoor/Outdoor | Outdoor |
| Replaceable light source | No |
| Primary Lamp Type | SMD |
Lifespan
| Average Rated Life (hr) | 100000 |
Certificates & Standards
| Certification Listing | RoHS; FCC; cULus |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Ordering Abbreviation | HAZFLOODP/300UNVD850/GR |
| Abbrev. With Packaging Info. | HAZFLOODP300UNVD850GR 1/CS 1/SKU |
| Family Brand Name | PERFORMANCE CLASS™ |
| General Description | HAZARDOUS FLOOD LIGHT, PERFORMANCE CLASS, 300W, 120-277V, 0-10V DIMMING, 80 CRI, 5000K, GRAY |
| Warranty | 5 years |
Logistical data
| Case Qty | 1 |
| Case Length (in) | 21.142 |
| Case Width (in) | 19.095 |
| Case Depth (in) | 13.819 |
| Case Cube (ft) | 3.229 |
| Case Weight (lbs) | 36.938 |
| Pallet Qty | 12 |
| Cases/Pallet | 12 |

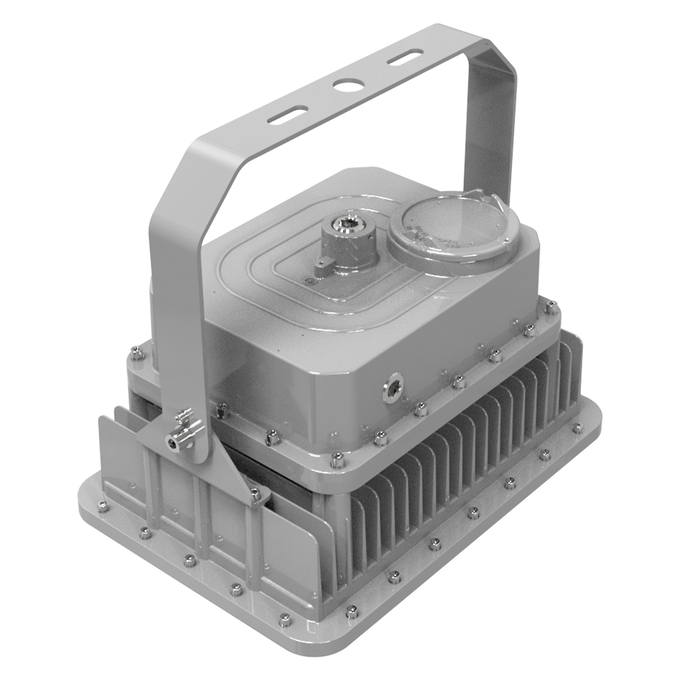

Product image: white background, diagonal
floodlight hazardous 300w cool diagonal
floodlight hazardous 300w cool diagonal
IES file (IES)
HAZARDOUS LOCATION FLOODLIGHT IES FILES
HAZARDOUS LOCATION FLOODLIGHT IES FILES
