SYLVANIA Specialty LED Lamps
SPECIALTY LED LAMPS S11 1.5W 3000K CL 1PK
NAED: 74675
Our warranty conditions
PRODUCT DETAILS
Areas of application
- Downlights, pendant fixtures, table lamps, wall sconces
- Healthcare, hospitality, residential, retail
- Residential and commercial
Product features
- Available in a variety of shapes, sizes, and base configurations
- Available in 3000K CCT
- RoHS compliant, mercury and lead free
- UV and IR free
Safety advice
- Suitable for damp locations.
- Non-dimmable.
- -4°F to +113°F (-20°C to +45°C)
- Not for use with emergency light fixtures or exit lights.
PRODUCT DATASHEET
Insert Sheet - LED Specialty Lamps
Insert Sheet - LED Specialty Lamps
Product Family Spec Sheet
SYLVANIA LED Micro Specialty Lamps
SYLVANIA LED Micro Specialty Lamps
Other documents / promotion
Insert Sheet - LED Specialty Lamps
Insert Sheet - LED Specialty Lamps
Other documents / promotion
LED Ultra General Purpose Lamps Limited Warranty
LED Ultra General Purpose Lamps Limited Warranty
Other documents / promotion
LEDVANCE US and Canada Warranty Terms and Conditions
LEDVANCE US and Canada Warranty Terms and Conditions
Electrical data
| Nominal Wattage | 1.50 W |
| Nominal voltage | 120.00 V |
| Claimed Equivalent Lamp Pwr | 5 W |
| Type of current | AC |
| Supply Frequency | 50…60 Hz |
Photometrical data
| Lumens | 70 lm |
| Efficacy | 46.66 |
| Light color (designation) | Warm White |
| Color Temperature/CCT | 3000 K |
| Color Rendering Index (CRI) | 80 |
| Light color | 830 |
Dimensions & Weight
| Diameter | 1.1 in |
| Length | 2.1 in |
| Height | 1.1 in |
| Width | 1.1 in |
| Product weight | 0.01 lb |
Materials & Colors
| Lamp Finish | Clear |
| Bulb shape | S11 |
| Bulb Glass Type | PLASTICS |
Application & Mounting
| Dimming | No |
Temperatures & operating conditions
| Ambient temperature range | -20…+45 °C |
Lifespan
| Average Rated Life (hr) | 15000 |
Additional product data
| Base type | E26 |
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
| Ordering Abbreviation | LED1.5S11830BL |
| Abbrev. With Packaging Info. | LED1.5S11830BL 6/CS 1/SKU |
| SKU UPC | 0046135746758 |
| Family Brand Name | ULTRA |
| General Description | S11, 1.5W 80CRI, 70 Lumen, 3000K, 15000 life |
Capabilities
| Dimming | No |
Certificates & Standards
| Certification Listing | RoHS; CSA; FTC; FCC; cETLus |
Logistical data
| SKU Qty | 1 |
| Case Qty | 6 |
| Case Length (in) | 9.125 |
| Case Width (in) | 4.437 |
| Case Depth (in) | 6.013 |
| Case Cube (ft) | 0.141 |
| Case Weight (lbs) | 0.479 |
| SKU UPC | 0046135746758 |
| Pallet Qty | 1,680 |
| SKU's/Case | 6 |
| SKU's/Pallet | 1680 |
| Cases/Pallet | 280 |

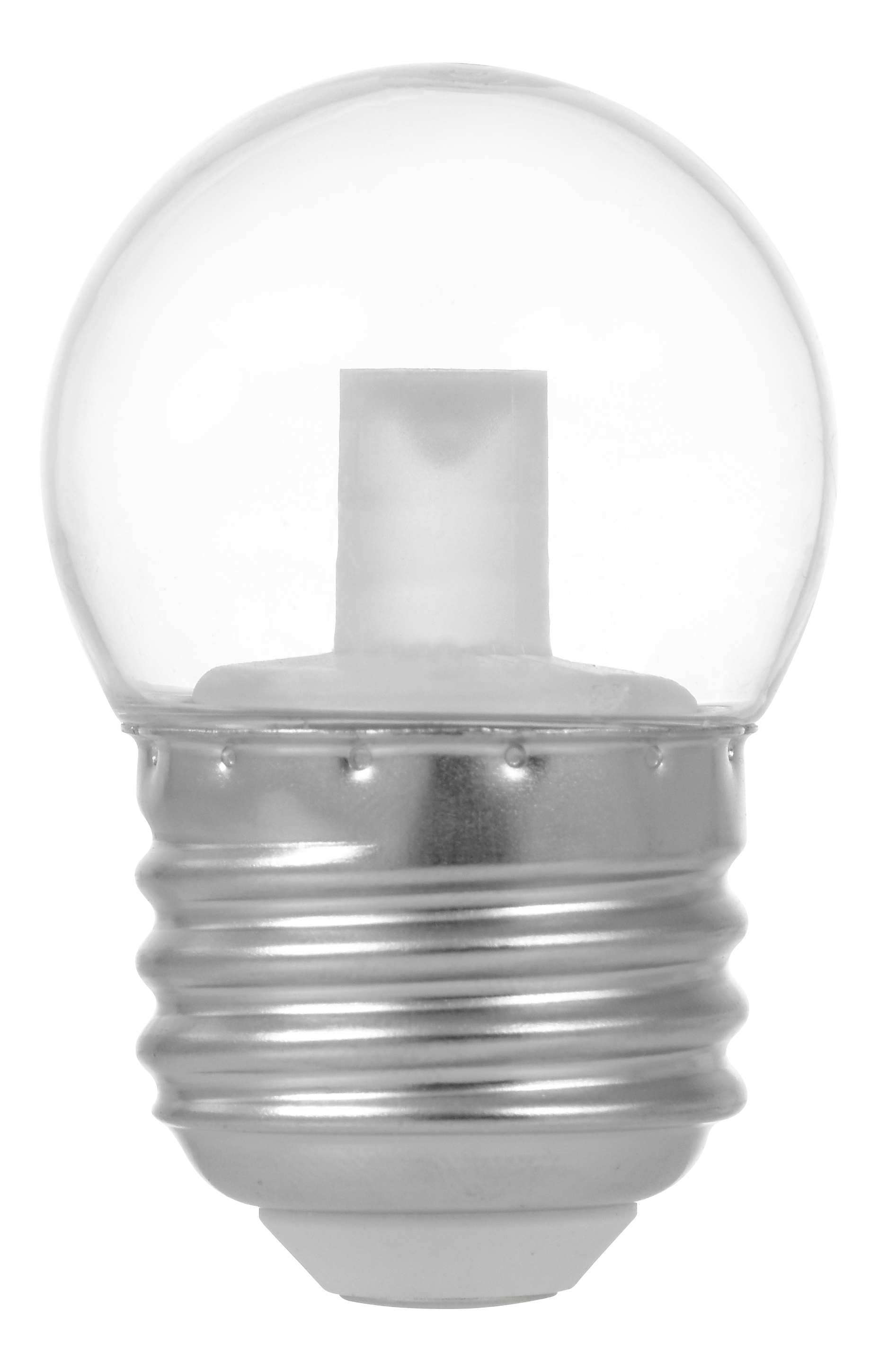

Product image: white background, upright
LED Specialty Lamp S11 Clear
LED Specialty Lamp S11 Clear

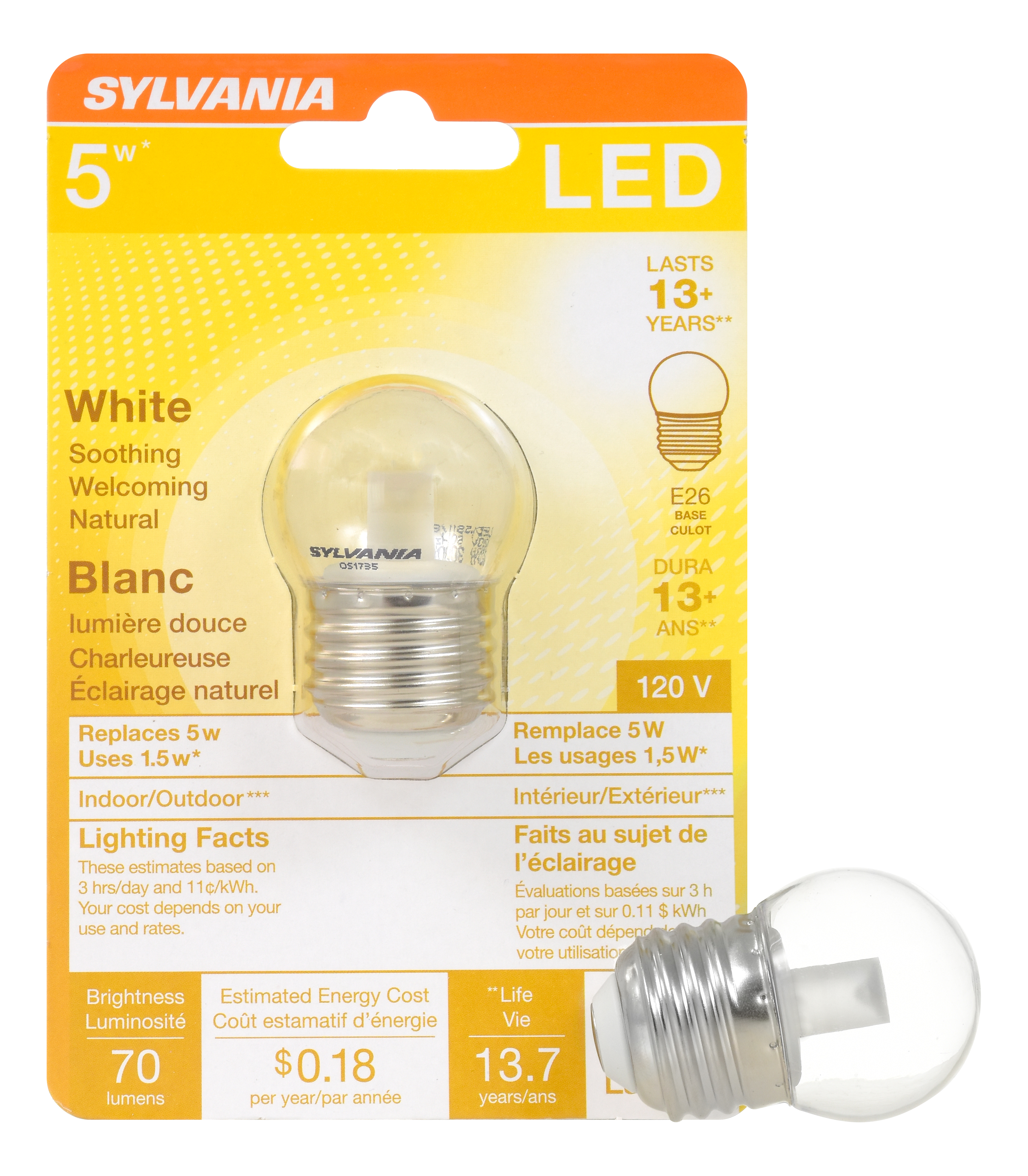

Packaging image, beauty shot
04613574675 bb Beauty Shot
04613574675 bb Beauty Shot
Packaging image, frontal
LED Specialty Clear S11
LED Specialty Clear S11

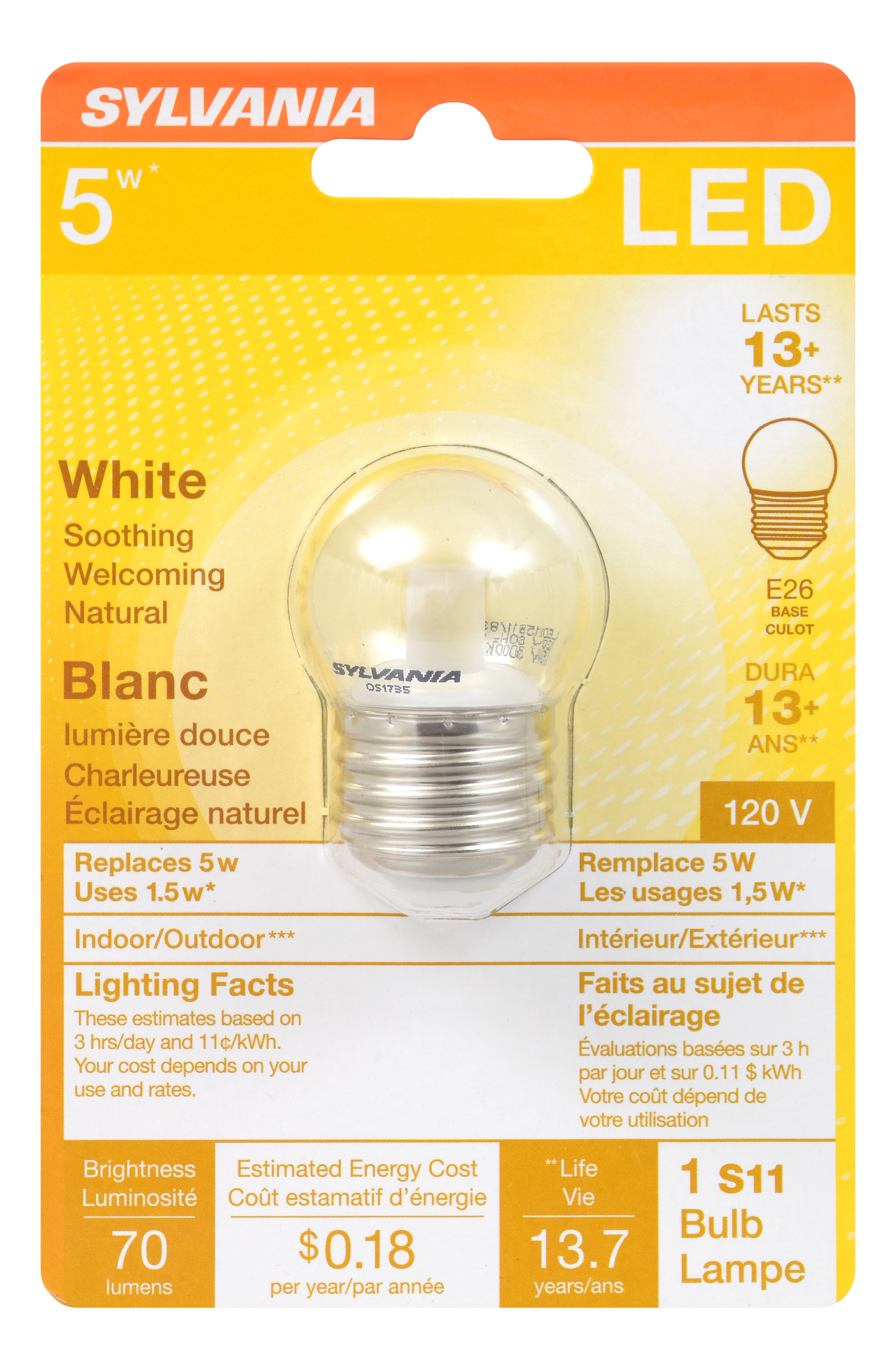

Packaging image, frontal
04613574675 bt Package Shot
04613574675 bt Package Shot
