SYLVANIA Specialty LED Lamps
SPECIALTY LED LAMPS T6 1W 3000K 1PK
NAED: 41464
Our warranty conditions
PRODUCT DETAILS
Areas of application
- Downlights, pendant fixtures, table lamps, wall sconces
- Healthcare, hospitality, residential, retail
- Residential and commercial
Product features
- Available in a variety of shapes, sizes, and base configurations
- Available in 3000K CCT
- RoHS compliant, mercury and lead free
- UV and IR free
Safety advice
- Suitable for damp locations.
- Non-dimmable.
- -4°F to +113°F (-20°C to +45°C)
- Not for use with emergency light fixtures or exit lights.
PRODUCT DATASHEET
Insert Sheet - LED Specialty Lamps
Insert Sheet - LED Specialty Lamps
Product Family Spec Sheet
SYLVANIA LED Micro Specialty Lamps
SYLVANIA LED Micro Specialty Lamps
Other documents / promotion
Insert Sheet - LED Specialty Lamps
Insert Sheet - LED Specialty Lamps
Other documents / promotion
LED Ultra General Purpose Lamps Limited Warranty
LED Ultra General Purpose Lamps Limited Warranty
Other documents / promotion
LEDVANCE US and Canada Warranty Terms and Conditions
LEDVANCE US and Canada Warranty Terms and Conditions
Electrical data
| Nominal Wattage | 1.00 W |
| Nominal voltage | 12.00 V |
| Claimed Equivalent Lamp Pwr | 10 W |
Photometrical data
| Lumens | 90 lm |
| Efficacy | 90 |
| Color Temperature/CCT | 3000 K |
| Color Rendering Index (CRI) | 80 |
| Light color | 830 |
Dimensions & Weight
| Diameter | 0.52 in |
| Length | 1.97 in |
| Height | 0.52 in |
| Width | 0.52 in |
| Product weight | 0.01 lb |
Materials & Colors
| Lamp Finish | Clear |
| Bulb shape | - |
| Bulb Glass Type | PLASTICS |
Application & Mounting
| Dimming | No |
Temperatures & operating conditions
| Ambient temperature range | -20…+45 °C |
Lifespan
| Average Rated Life (hr) | 10000 |
Additional product data
| Base type | G4 |
| Mercury content | 0.0 mg |
| Ordering Abbreviation | LED1T6G4830BL |
| Abbrev. With Packaging Info. | LED1T6G4830BL 6/CS 1/SKU |
| SKU UPC | 0046135414640 |
| Family Brand Name | ULTRA |
| General Description | G4, 1W, 80 CRI, 90 LUMENS, 3000K, 10000 life time |
Capabilities
| Dimming | No |
Certificates & Standards
| Certification Listing | RoHS; CSA; FTC; FCC; cULus |
Logistical data
| SKU Qty | 1 |
| Case Qty | 6 |
| Case Length (in) | 6.438 |
| Case Width (in) | 4.563 |
| Case Depth (in) | 6.438 |
| Case Cube (ft) | 0.109 |
| Case Weight (lbs) | 0.288 |
| SKU UPC | 0046135414640 |
| Pallet Qty | 2,646 |
| SKU's/Case | 6 |
| SKU's/Pallet | 2646 |
| Cases/Pallet | 441 |

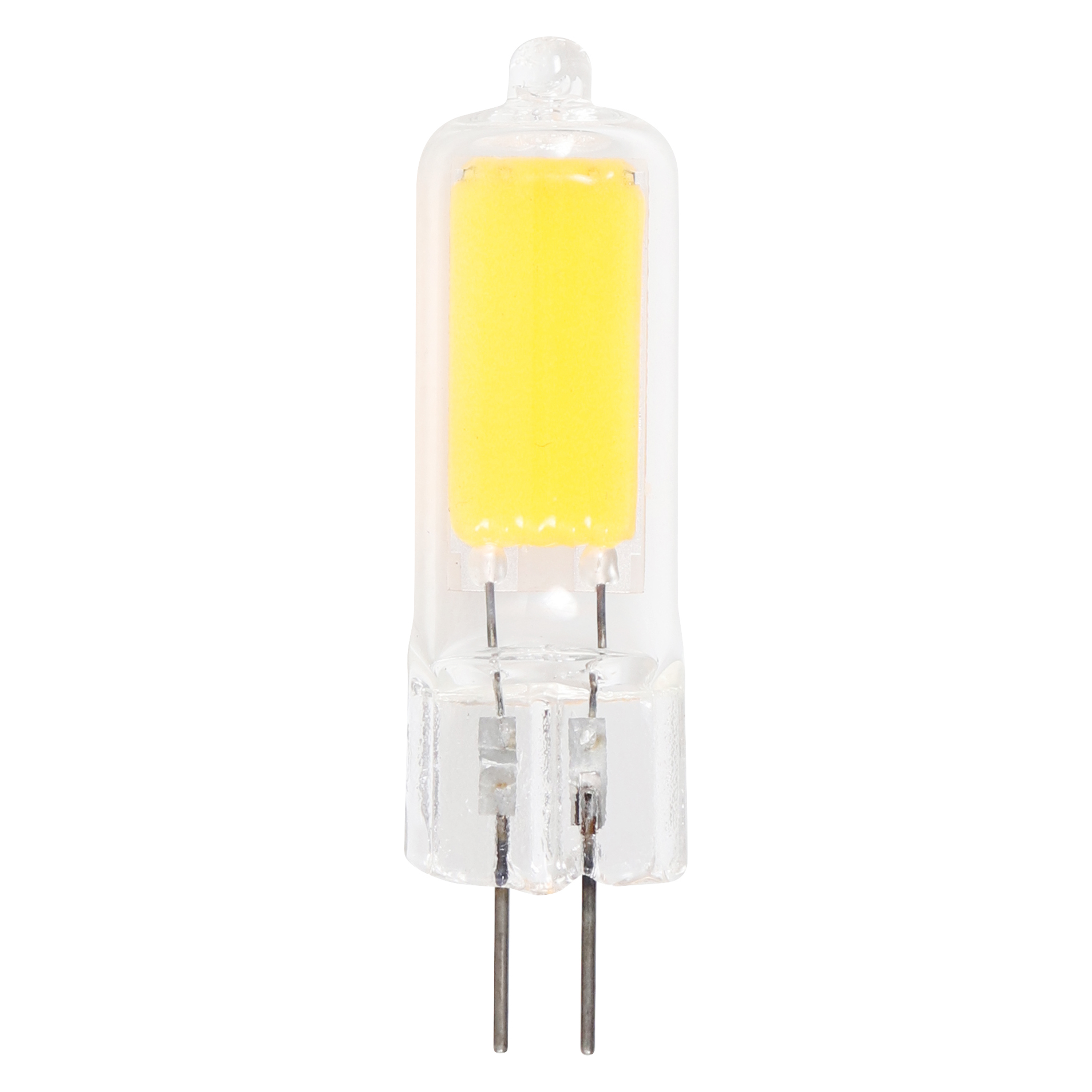

Product image: white background, upright
MICRO LED G4 Bipin
MICRO LED G4 Bipin
