SYLVANIA ULTRA LED™ PAR Lamps
ULTRA LED™ Glass PAR Lamps 11W PAR30LN DIM 5000K FL 40 1PK
NAED: 74603
Our warranty conditions
PRODUCT DETAILS
Areas of application
- Downlights, pendant fixtures, table lamps, wall sconces
- Healthcare, hospitality, residential, retail
Product features
- Longer life than traditional halogen lamps
- Glass body with full optics – similar to halogen PAR lamps
- CRI of 80 ensures good color definition
- RoHS compliant, mercury and lead free
- Dimmable down to 10 %
- Wet rated
Safety advice
- Suitable for wet locations.
- -4°F to +113°F (-20°C to +45°C)
- Not for use with emergency light fixtures or exit lights.
- Approved for use in enclosed fixtures.
Product Family Spec Sheet
ULTRA LED Glass PAR Lamps
ULTRA LED Glass PAR Lamps
Other documents / promotion
LEDVANCE US and Canada Warranty Terms and Conditions
LEDVANCE US and Canada Warranty Terms and Conditions
Electrical data
| Nominal Wattage | 11.00 W |
| Nominal voltage | 120.00 V |
| Claimed Equivalent Lamp Pwr | 75 W |
| Type of current | AC |
| Centerbeam Candlepower (cp) | 1,375 cd |
Photometrical data
| Lumens | 850 lm |
| Efficacy | 77 |
| Color Temperature/CCT | 5000 K |
| Color Rendering Index (CRI) | 82 |
| Light color | 850 |
Dimensions & Weight
| Diameter | 3.74 in |
| Length | 4.61 in |
| Height | 3.74 in |
| Width | 3.74 in |
| Product weight | 0.49 lb |
Materials & Colors
| Lamp Finish | Silver |
| Bulb shape | PAR30LN |
| Bulb Glass Type | HARDGLASS |
Application & Mounting
| Dimming | Yes |
Temperatures & operating conditions
| Ambient temperature range | -20…+45 °C |
Lifespan
| Average Rated Life (hr) | 15000 |
Additional product data
| Base type | E26 |
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
| Ordering Abbreviation | LED11PAR30LNDIM850FL4013YGLWRP |
| Abbrev. With Packaging Info. | LED11PAR30LNDIM850FL4013YGLWRP 6/CS 1/SK |
| SKU UPC | 0046135746031 |
| Family Brand Name | ULTRA GLASS |
| General Description | LED PAR30 LN, 11W, Dimmable, 82CRI, 850 Lumen, 5000K, 15000 Life,E26Medium Base |
Capabilities
| Dimming | Yes |
Certificates & Standards
| Type of protection | IP66 |
| Certification Listing | RoHS; CSA; FTC; FCC; cULus |
Logistical data
| SKU Qty | 1 |
| Case Qty | 6 |
| Case Length (in) | 13.000 |
| Case Width (in) | 10.125 |
| Case Depth (in) | 7.125 |
| Case Cube (ft) | 0.543 |
| Case Weight (lbs) | 4.950 |
| SKU UPC | 0046135746031 |
| Pallet Qty | 504 |
| SKU's/Case | 6 |
| SKU's/Pallet | 504 |
| Cases/Pallet | 84 |
Beauty Shot
ULTRA LED Glass PAR Family
ULTRA LED Glass PAR Family

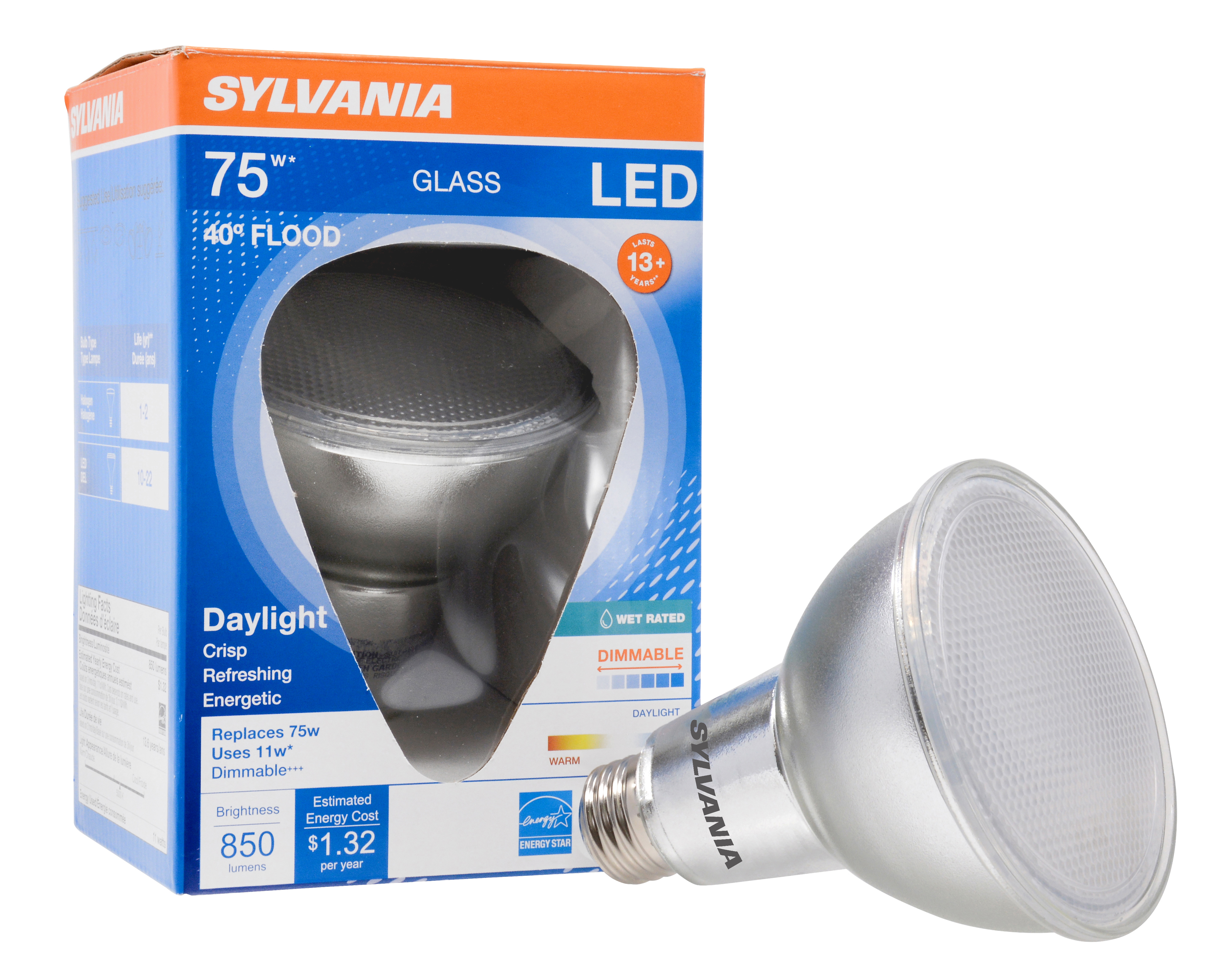

Packaging image, beauty shot
04613574603 bb Beauty Shot
04613574603 bb Beauty Shot

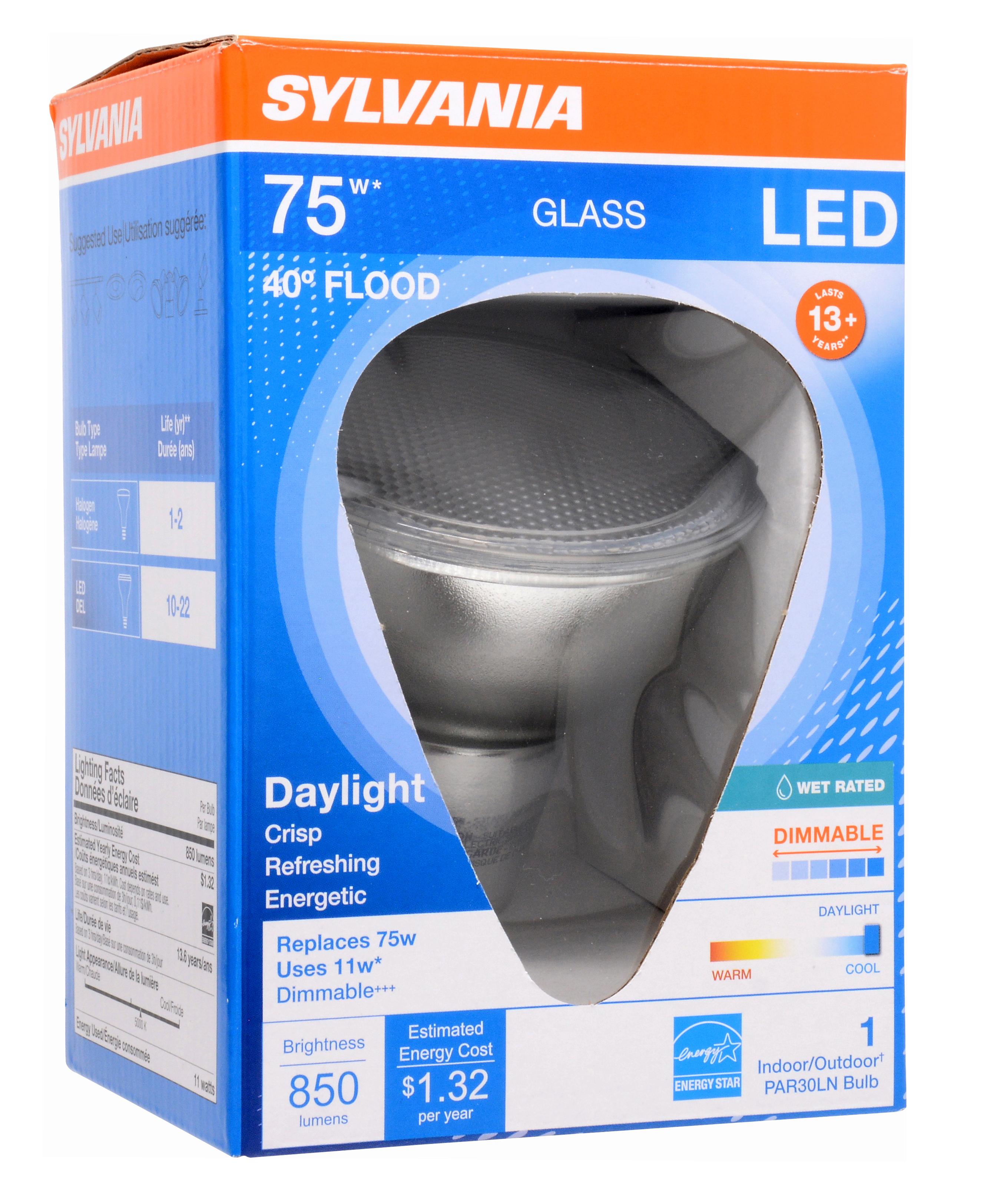

Packaging image, spacial
04613574603 bt Package Shot
04613574603 bt Package Shot
