SYLVANIA ULTRA LED™ PAR Lamps
ULTRA LED™ Glass PAR Lamps 7W PAR20 DIM 4000K FL 40 1PK
NAED: 41048
Our warranty conditions
PRODUCT DETAILS
Areas of application
- Downlights, pendant fixtures, table lamps, wall sconces
- Healthcare, hospitality, residential, retail
Product features
- Longer life than traditional halogen lamps
- Glass body with full optics – similar to halogen PAR lamps
- CRI of 80 ensures good color definition
- RoHS compliant, mercury and lead free
- Dimmable down to 10 %
- Wet rated
Safety advice
- Suitable for wet locations.
- -4°F to +113°F (-20°C to +45°C)
- Not for use with emergency light fixtures or exit lights.
- Approved for use in enclosed fixtures.
Product Family Spec Sheet
ULTRA LED Glass PAR Lamps
ULTRA LED Glass PAR Lamps
Other documents / promotion
LEDVANCE US and Canada Warranty Terms and Conditions
LEDVANCE US and Canada Warranty Terms and Conditions
Electrical data
| Nominal Wattage | 7.00 W |
| Nominal voltage | 120.00 V |
| Claimed Equivalent Lamp Pwr | 50 W |
Photometrical data
| Lumens | 525 lm |
| Efficacy | 75 |
| Color Temperature/CCT | 4000 K |
| Color Rendering Index (CRI) | 82 |
| Light color | 840 |
Dimensions & Weight
| Diameter | 2.52 in |
| Length | 3.27 in |
| Height | 2.52 in |
| Width | 2.52 in |
| Product weight | 0.27 lb |
Materials & Colors
| Bulb shape | PAR20 |
| Bulb Glass Type | HARDGLASS |
Application & Mounting
| Dimming | Yes |
Lifespan
| Average Rated Life (hr) | 15000 |
Additional product data
| Base type | E26 |
| Mercury-free | Yes |
| Ordering Abbreviation | LED7PAR20DIM840FL4013YGLWRP |
| Abbrev. With Packaging Info. | LED7PAR20DIM840FL4013YGLWRP 6/CS 1/SKU |
| SKU UPC | 0046135410482 |
| Family Brand Name | ULTRA GLASS |
| General Description | LED PAR20, 7W, Dimmable, 82CRI, 525 Lumen, 4000K, 15000 life |
Capabilities
| Dimming | Yes |
Certificates & Standards
| Certification Listing | RoHS; CSA; FTC; FCC; cETLus |
| Energy Star Rated | X |
Logistical data
| SKU Qty | 1 |
| Case Qty | 6 |
| Case Length (in) | 8.625 |
| Case Width (in) | 7.500 |
| Case Depth (in) | 4.313 |
| Case Cube (ft) | 0.161 |
| Case Weight (lbs) | 2.457 |
| SKU UPC | 0046135410482 |
| Pallet Qty | 1,848 |
| SKU's/Case | 6 |
| SKU's/Pallet | 1848 |
| Cases/Pallet | 308 |
Beauty Shot
ULTRA LED Glass PAR Family
ULTRA LED Glass PAR Family

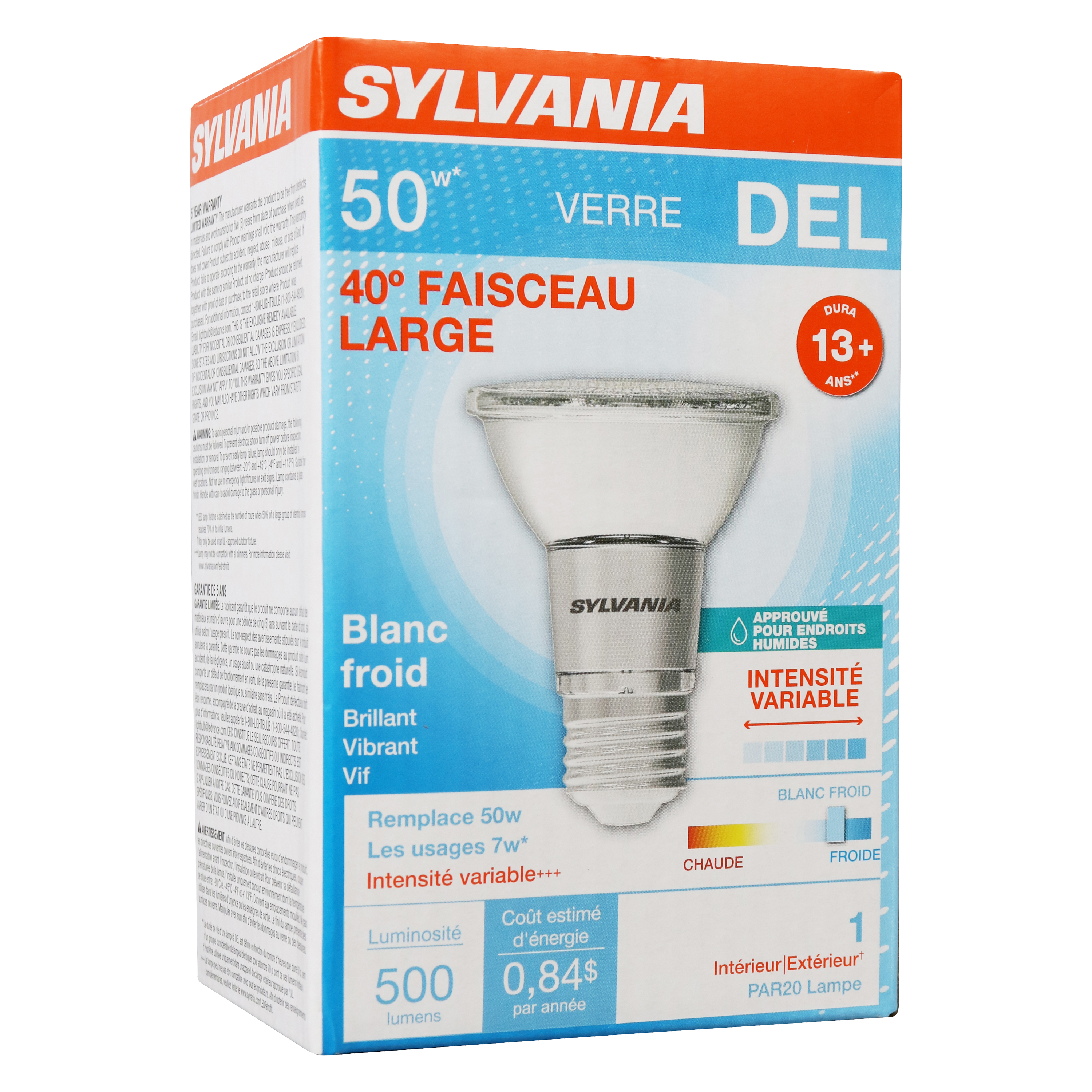

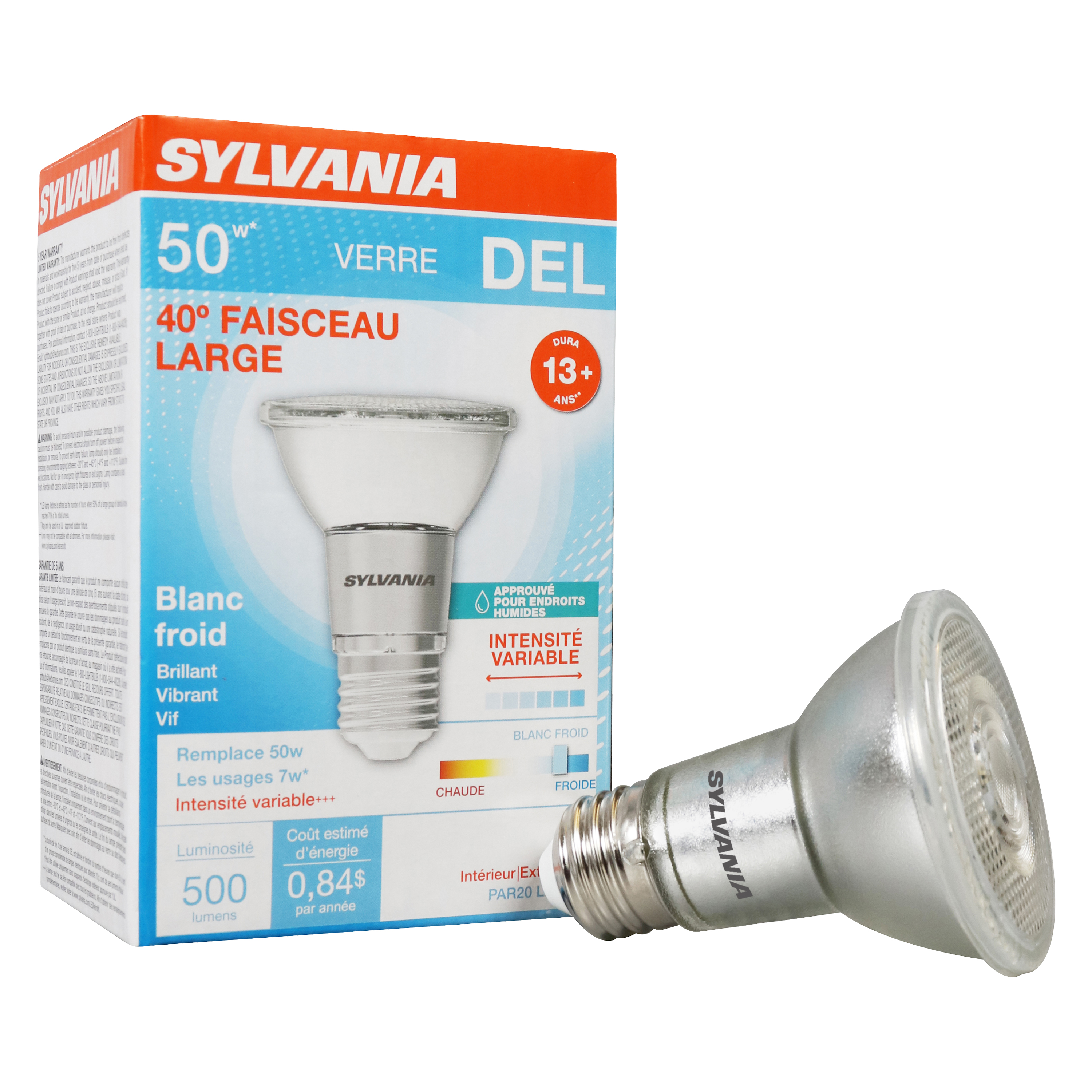

Packaging image, beauty shot
LED PAR20 E26 DIM 7W 4000K FL40
LED PAR20 E26 DIM 7W 4000K FL40

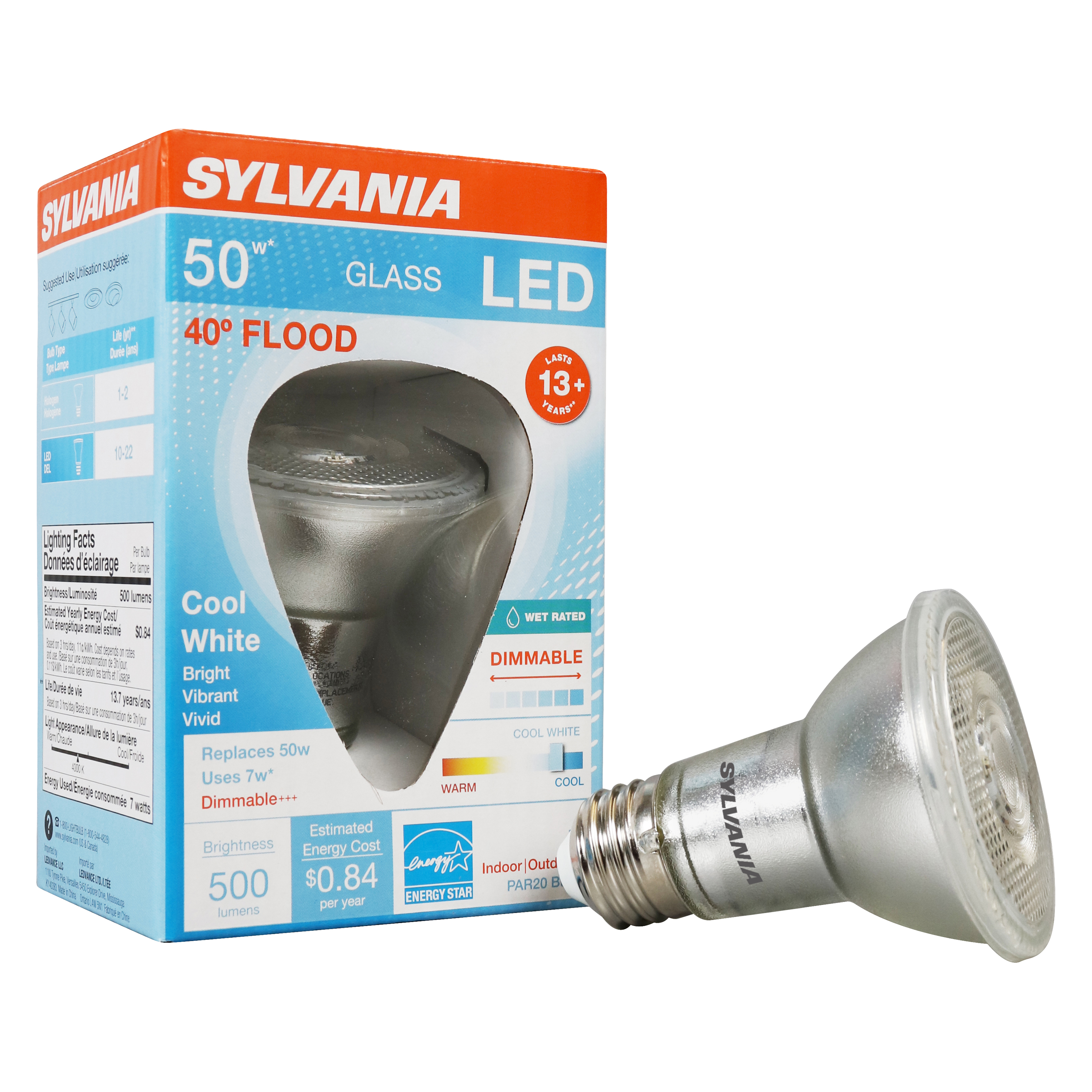

Packaging image, beauty shot
LED PAR20 E26 DIM 7W 4000K FL40
LED PAR20 E26 DIM 7W 4000K FL40

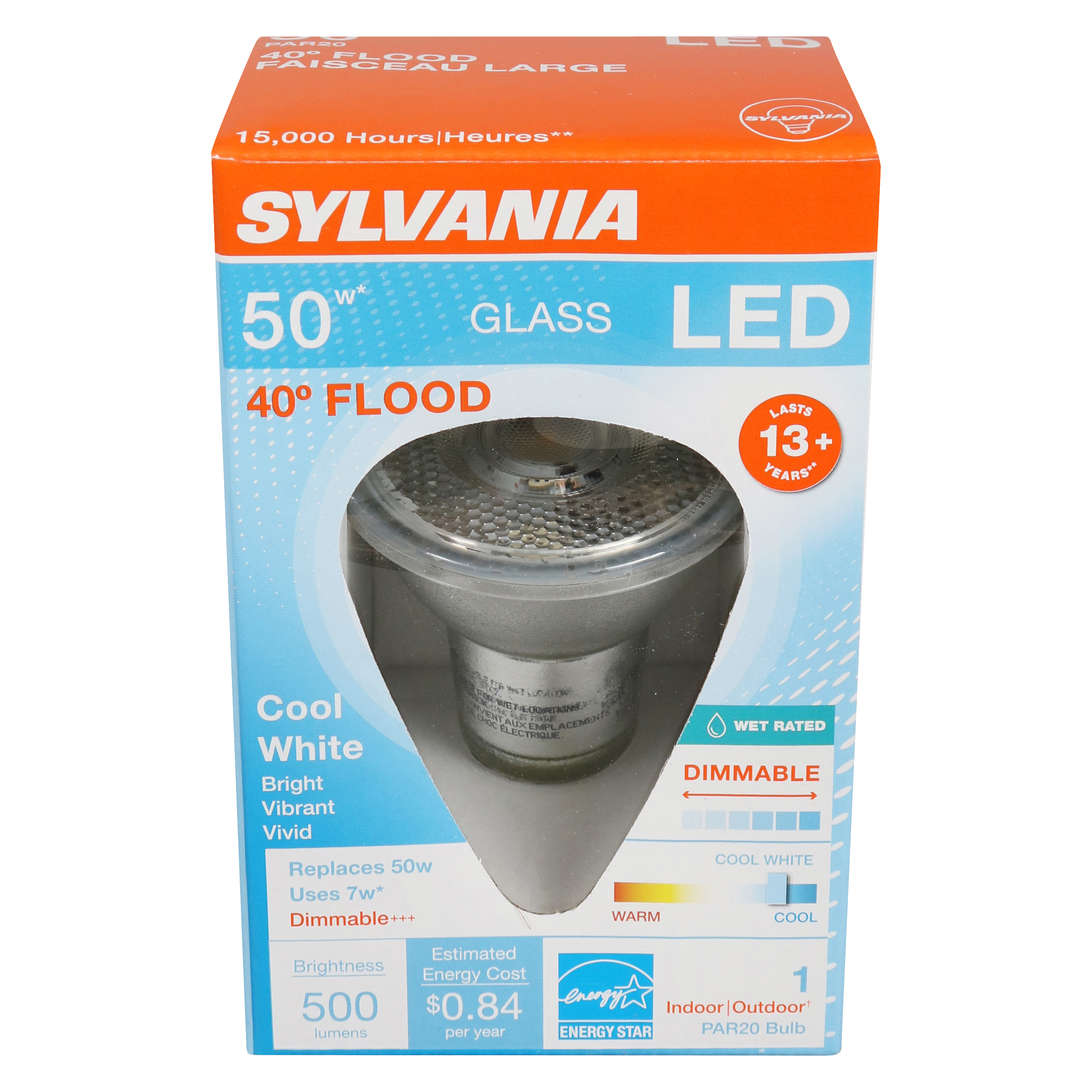

Packaging image, frontal
LED PAR20 E26 DIM 7W 4000K FL40
LED PAR20 E26 DIM 7W 4000K FL40

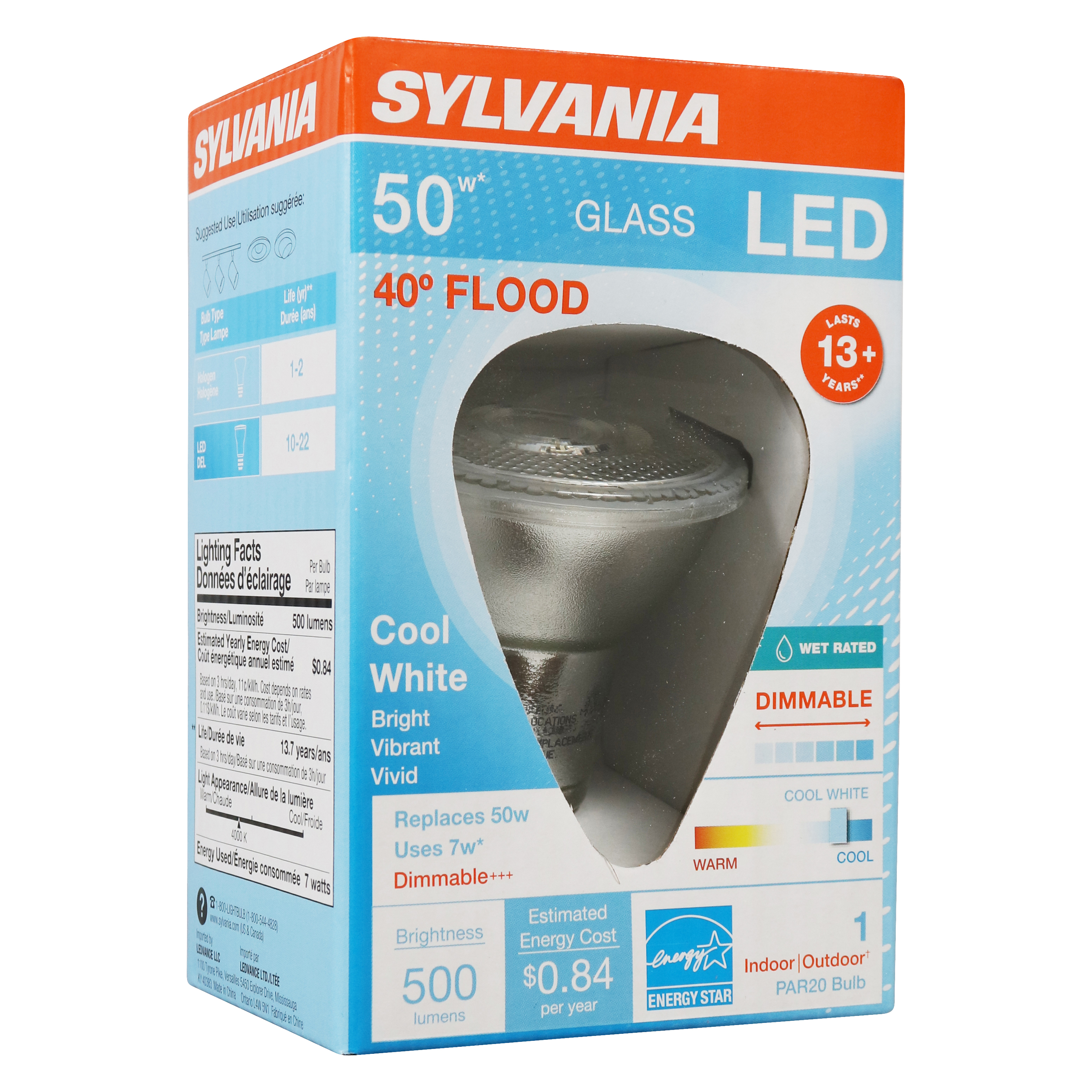

Packaging image, spacial
