SYLVANIA High Output PAR Lamps
ULTRA LED™ HO PAR Lamps PAR38 23W HO DIM 3000K FL 40 1PK
NAED: 41468
Our warranty conditions
PRODUCT DETAILS
Areas of application
- Downlights, pendant fixtures, table lamps, wall sconces
- Healthcare, hospitality, residential, retail
- Grocery
- Houses of worship
Product features
- High CBCP performance
- Up to 100 LPW
- Outstanding color uniformity and beam quality utilizing COB technology
- 277V option allows compatible replacement for HID lamps
- UL1993 & UL1598C tested
- Great replacement options for high power halogen and HID lamp
- 25,000 hours lifetime (L70)
- Dimmable down to 10 %
Safety advice
- Use in fixtures that support a half-pound lamp.
- -4°F to +104°F (-20°C to +40°C)
- Not for use with emergency light fixtures or exit lights.
Product Family Spec Sheet
ULTRA LED HO PAR Lamps
ULTRA LED HO PAR Lamps
Other documents / promotion
LEDVANCE US and Canada Warranty Terms and Conditions
LEDVANCE US and Canada Warranty Terms and Conditions
Electrical data
| Nominal Wattage | 23.00 W |
| Nominal voltage | 120.00 V |
| Claimed Equivalent Lamp Pwr | 250 W |
| Centerbeam Candlepower (cp) | 5,000 |
Photometrical data
| Lumens | 2650 lm |
| Efficacy | 115 |
| Color Temperature/CCT | 3000 K |
| Color Rendering Index (CRI) | 81 |
| Light color | 830 |
Dimensions & Weight
| Diameter | 4.8 in |
| Length | 5.12 in |
| Height | 4.8 in |
| Width | 4.8 in |
| Product weight | 0.44 lb |
Materials & Colors
| Lamp Finish | White |
| Bulb shape | PAR38 |
| Bulb Glass Type | PLASTICS |
Application & Mounting
| Dimming | Yes |
Temperatures & operating conditions
| Ambient temperature range | -20…+40 °C |
Lifespan
| Average Rated Life (hr) | 25000 |
Additional product data
| Base type | E26 |
| Mercury content | 0.0 mg |
| Ordering Abbreviation | LED23PAR38HODIM830FL40WRP[WM] |
| Abbrev. With Packaging Info. | LED23PAR38HODIM830FL40WRP[WM] 2/CS 1/SKU |
| SKU UPC | 0046135747939 |
| Family Brand Name | ULTRA HO |
| General Description | LED PAR38, 23W, Dimmable, 81CRI, 2650 Lumen, 3000K, 25000 Life, MediumBase |
| Warranty | 5 years |
Capabilities
| Dimming | Yes |
Certificates & Standards
| Certification Listing | RoHS; CSA; FTC; FCC |
Logistical data
| SKU Qty | 1 |
| Case Qty | 2 |
| Case Length (in) | 11.024 |
| Case Width (in) | 6.142 |
| Case Depth (in) | 6.024 |
| Case Cube (ft) | 0.236 |
| Case Weight (lbs) | 1.873 |
| SKU UPC | 0046135747939 |
| Pallet Qty | 392 |
| SKU's/Case | 2 |
| SKU's/Pallet | 392 |
| Cases/Pallet | 196 |
Product image: white background, upright
LED PAR38 23W Dim 2650 Lumen 5000K 3000K
LED PAR38 23W Dim 2650 Lumen 5000K 3000K
Product image: white background, upright
LED PAR38 23W Dim 2650 Lumen 5000K 3000K
LED PAR38 23W Dim 2650 Lumen 5000K 3000K

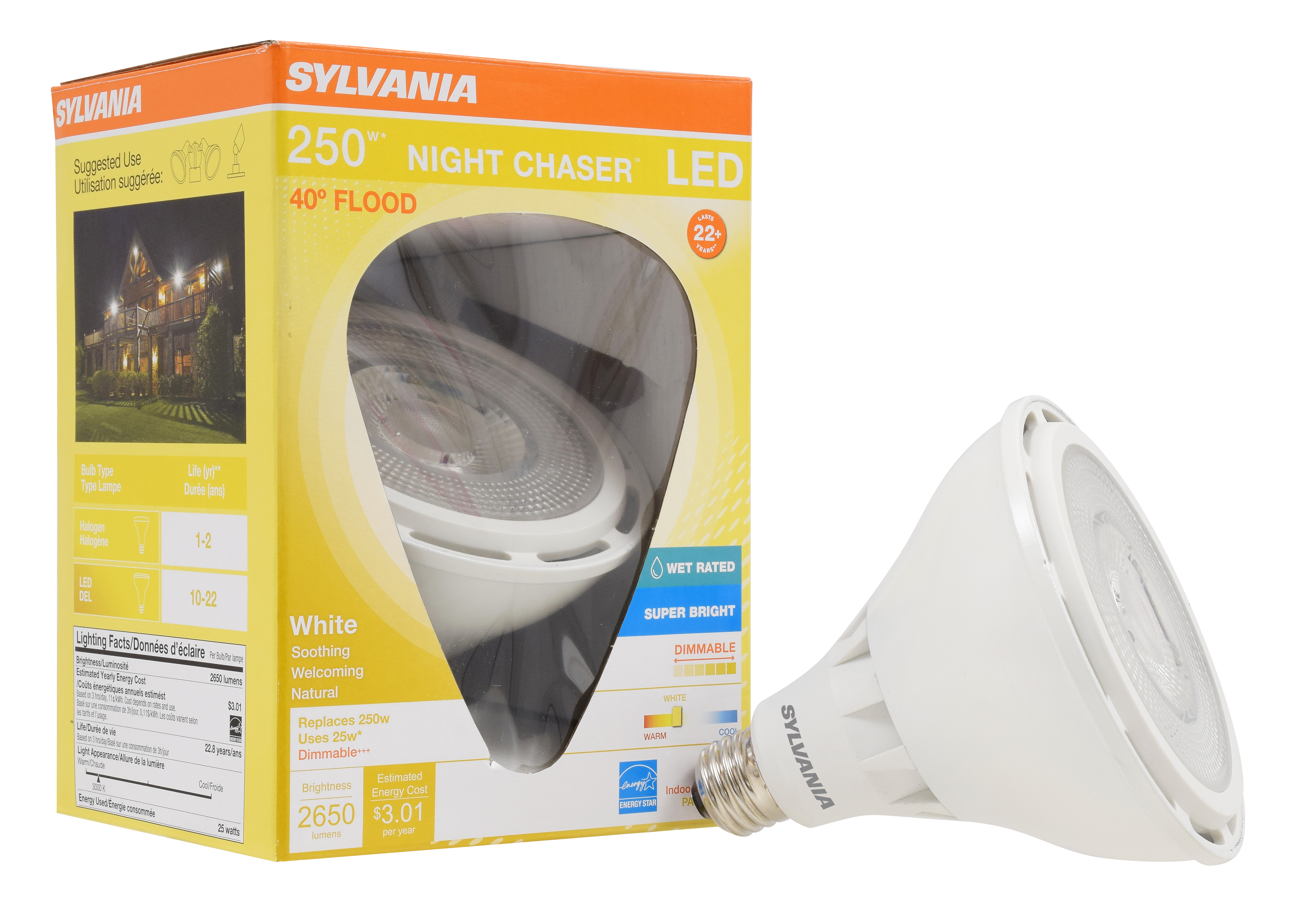

Packaging image, beauty shot
04613574793 bb Beauty Shot
04613574793 bb Beauty Shot

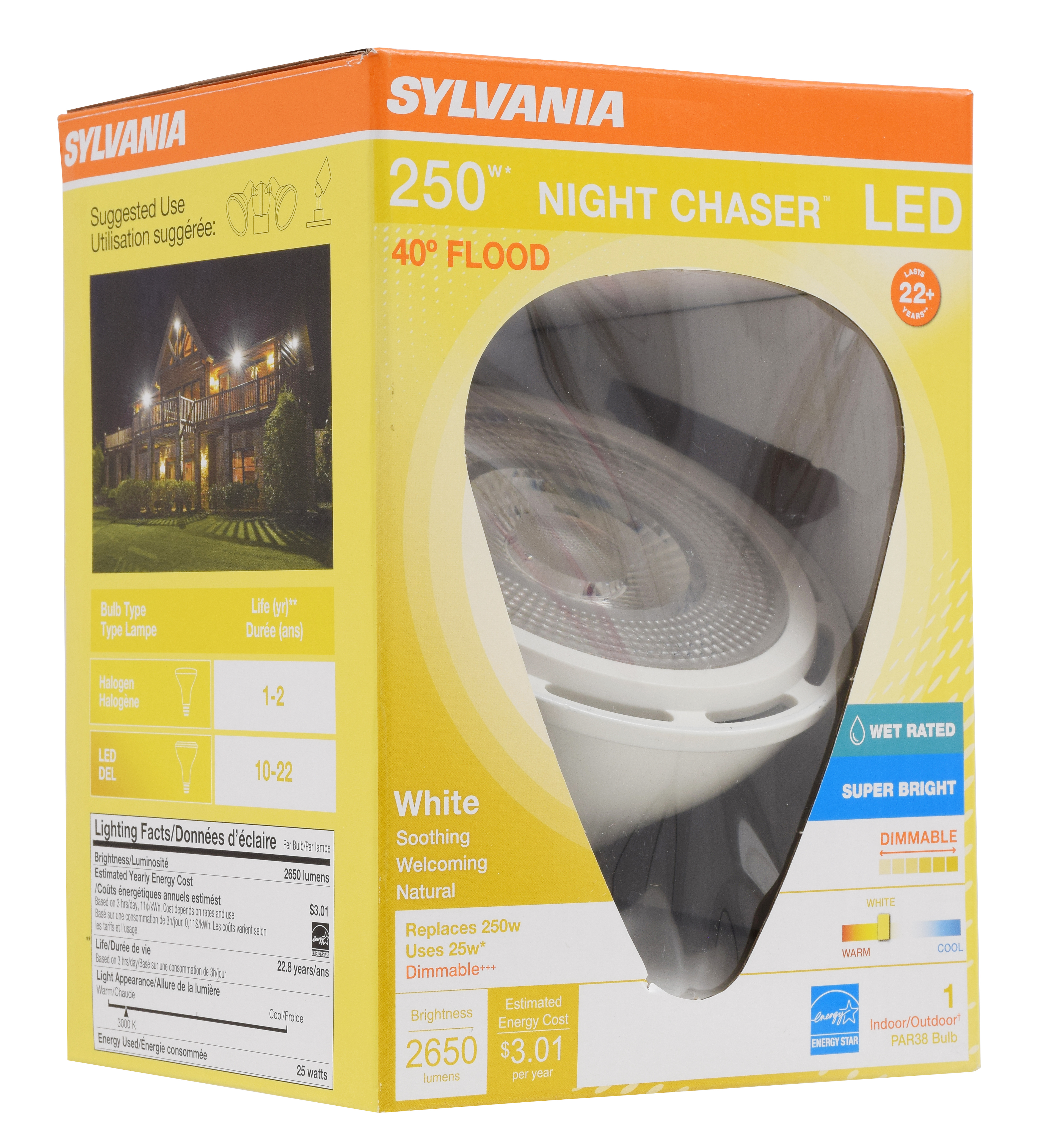

Packaging image, spacial
04613574793 bt Package Shot
04613574793 bt Package Shot
