SYLVANIA TruWave MR16

TruWave® MR16 4.5W DIM 5000K NFL 25 1PK

NAED: 40923
Our warranty conditions

PRODUCT DETAILS

Areas of application
  • Downlights, pendant fixtures, table lamps, wall sconces
  • Healthcare, hospitality, residential, retail
Product features
  • Exceptional color quality without the loss of efficacy typical of most 90+ CRI solutions
  • Properly saturates red to make building spaces and flesh tones accurate and vibrant
  • Clean light color rendering for seeing realistic, vivid colors
  • Controls blue wavelengths for lower glare and reduced eye strain to improve readability
  • Up to 78 LPW
  • 5-year limited warranty
  • California Title 20
  • Long life up to 25,000 hours (L70)
Safety advice
  • Not for use in totally enclosed fixtures.
  • Suitable for use in dry and damp locations.
  • Dimmable down to 10 %
  • -4°F to +113°F (-20°C to +45°C)
  • Not for use with emergency light fixtures or exit lights.
  • 12V
Product Family Spec Sheet
Natural Series MR16
Other documents / promotion
Insert Sheet - Natural Series with TruWave Technology
Other documents / promotion
Ultra LED Retrofit and True Wave™ Limited Product Warranty
Other documents / promotion
Insert Sheet - Natural Series with TruWave Technology
Other documents / promotion
LEDVANCE US and Canada Warranty Terms and Conditions
Electrical data
Nominal Wattage 4.50 W
Nominal voltage 12.00 V
Claimed Equivalent Lamp Pwr 20 W
Type of current AC
Centerbeam Candlepower (cp) 876 cd
Photometrical data
Lumens 350 lm
Efficacy 78
Color Temperature/CCT 5000 K
Color Rendering Index (CRI) 90
Light color 950
Light technical data
Beam angle 25 °
Dimensions & Weight
Diameter 1.97 in
Length 1.73 in
Height 1.97 in
Width 1.97 in
Product weight 0.1 lb
Materials & Colors
Lamp Finish Silver
Bulb shape MR16
Bulb Glass Type HARD GLASS REFL & QUARTZ CAPS
Application & Mounting
Dimming Yes
Lifespan
Average Rated Life (hr) 25000
Additional product data
Base type GU5.3
Mercury content 0.0 mg
Mercury-free Yes
Ordering Abbreviation LED4.5MR16DIM950TLNFL25GLRP
Abbrev. With Packaging Info. LED4.5MR16DIM950TLNFL25GLRP 6/CS 1/SKU
SKU UPC 0046135409233
Family Brand Name TruWave™
General Description LED Natural™ TruWave™ MR16, 4.5W, Dimmable, 90CRI, 350 Lumen, 5000K, 25000 Life, GU5.3 Bipin Base, Silver Finish
Capabilities
Dimming Yes
Certificates & Standards
Certification Listing RoHS; CSA; FCC; cETLus; CEC
Logistical data
SKU Qty 1
Case Qty 6
Case Length (in) 7.205
Case Width (in) 4.803
Case Depth (in) 4.803
Case Cube (ft) 0.096
Case Weight (lbs) 1.138
SKU UPC 0046135409233
Pallet Qty 3,816
SKU's/Case 6
SKU's/Pallet 3816
Cases/Pallet 636
Product image: white background, upright
Natural MR16 Bulb

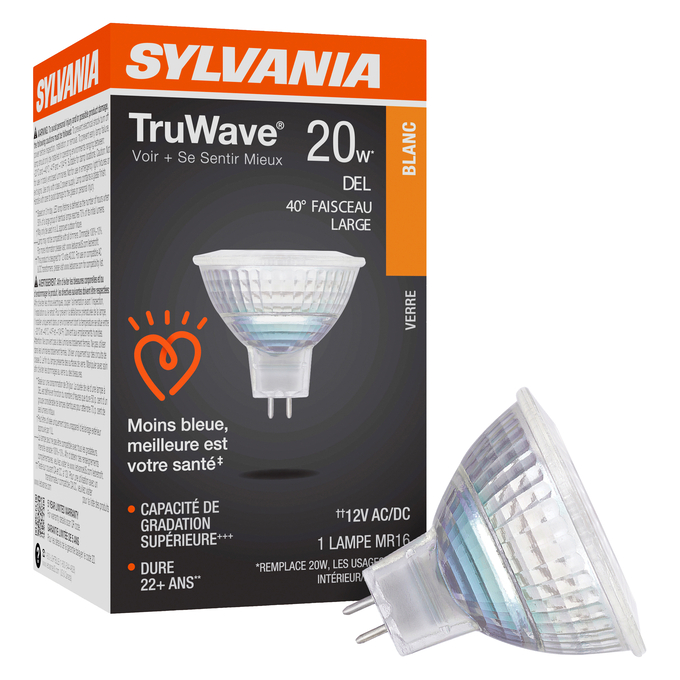

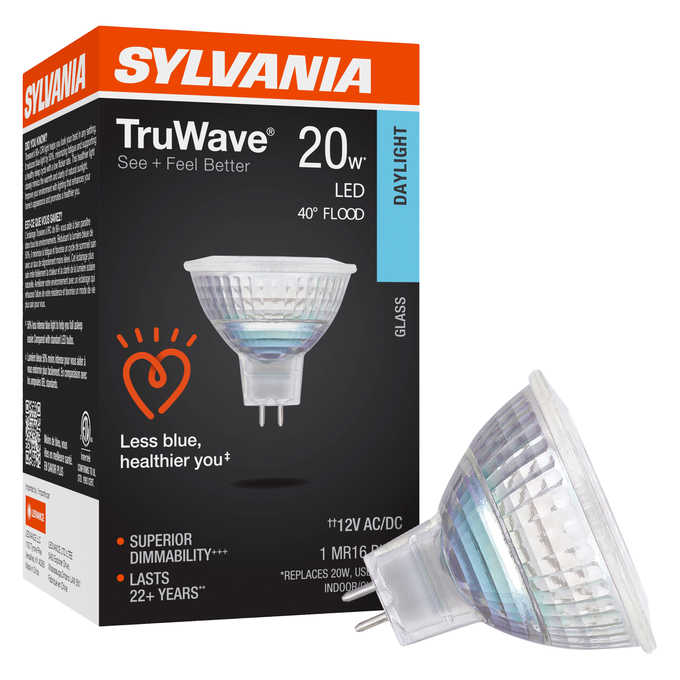

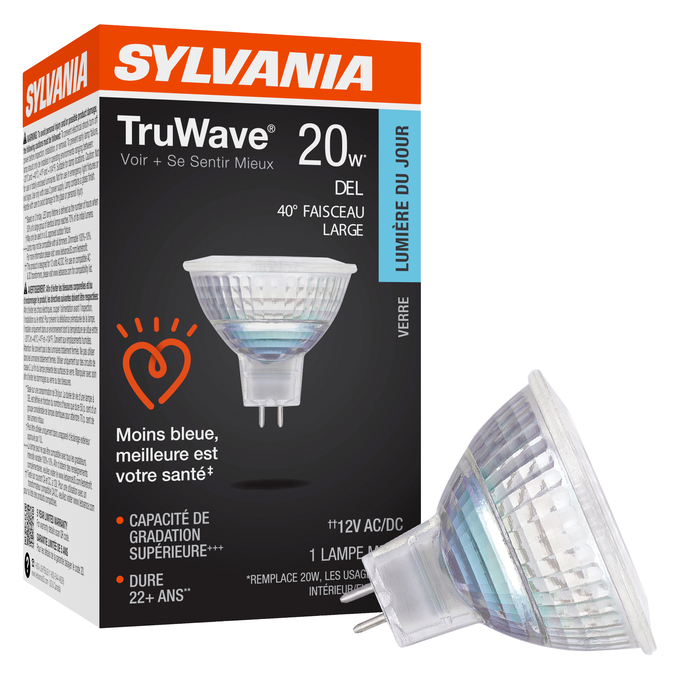

Combo Shot = Product Beauty Shot + Packaging Image
