SYLVANIA LUMALUX STANDBY
LUMALUX STANDBY LU15055SBY 20/C
NAED: 67544
Show all packages
Our warranty conditions
PRODUCT DETAILS
Areas of application
- Manufacturing facilities
- Parking lots and garages
- Prisons / Security
- Street and roadway lighting
- Warehouses
- Suitable for use in open and enclosed luminaires
Product features
- Dual arc-tube ensures quick restart after momentary power interruption
- Extremely long life - about 40,000 hours
- High efficacy
- Lead-free borosilicate hard glass outer jacket
- Lead-free base allows a higher maximum base temperature of 250 °C
- Nearly equal light output as compared to standard LUMALUX HPS lamps
- Direct replacements for standard HPS; operates on ballasts of same wattage
Safety advice
- Lamps are approved for use on systems meeting the respective ANSI standard.
- Lamps may be operated in any position.
- Contains Mercury – Dispose of according to Local, State or Federal laws
Electrical data
| Nominal wattage | 150.00 W |
| Construction wattage | 150.00 W |
| Nominal voltage | 55.00 V |
Photometrical data
| Luminous flux | 16000 lm |
| Efficacy | 106 lm/W |
| Color temperature | 2100 K |
| Color Rendering Index (CRI) | 22 |
| Light color | 221 |
Dimensions & Weight
| Overall length | 197.00 mm |
| Diameter | 75.01 mm |
| Product weight | 140.00 g |
Additional product data
| Base type | E39 |
| Mercury content | 31.4 mg |
Country-specific categorizations
| Order reference | LU15055SBY 20/C |
Energy labelling regulation data acc EU 2019/2015
| Light source cap-type (or other electric interface) | E39 |
| Length | 197.00 mm |
| Height | 75.01 mm |
| Width | 75.01 mm |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|
Product image: white background, upright
150W LUMALUX STANDBY high pressure sodium HID lamp
150W LUMALUX STANDBY high pressure sodium HID lamp
Combo Shot = Product Beauty Shot + Packaging Image
150W LUMALUX STANDBY high pressure sodium HID lamp
150W LUMALUX STANDBY high pressure sodium HID lamp

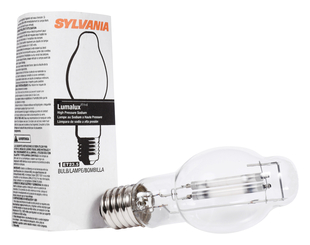

Packaging image, beauty shot
