SYLVANIA LUMALUX PLUS XL ECO
LUMALUX PLUS XL ECO LU200PLUSXLECO
NAED: 67808
Show all packages
Our warranty conditions
PRODUCT DETAILS
Areas of application
- Manufacturing facilities
- Parking lots and garages
- Prisons / Security
- Street and roadway lighting
- Tunnels
- Warehouses
Product features
- Average rated lamp life is 80,000 hours – 85 % survival at 48,000 hours
- Combined technology of PLUS and STANDBY for non-cycling and instant hot restrike
- 3 x the life of standard HPS
- 100% longer life than comparable HPS PLUS and STANDBY lamps
- Instant hot restrike after power interruption
- Non-cycling lamps mean quicker outage identification, fewer trips, less igniter stress
- Lamp design eliminates voltage rise
- High efficacy
- Passes Federal TCLP test. Lead-free & up to 90 % less mercury than standard HPS lamps
- Lead-free base allows a higher maximum base temperature of 250 °C
- Direct replacements for HPS standard, PLUS, STANDBY; operates on same wattage ballasts
Safety advice
- Direct retrofit on existing ANSI designated ballasts of same wattage of standard high-pressure sodium lamps.
- Contains Mercury – Dispose of according to Local, State or Federal laws
Electrical data
| Nominal wattage | 200.00 W |
| Construction wattage | 200.00 W |
| Nominal voltage | 100.00 V |
Photometrical data
| Luminous flux | 21500 lm |
| Efficacy | 107.5 |
| Color temperature | 2100 K |
| Color Rendering Index (CRI) | 22 |
| Light color | 221 |
Dimensions & Weight
| Overall length | 248.01 mm |
| Diameter | 46.00 mm |
| Product weight | 141.1 g |
Additional product data
| Base type | E39 |
| Mercury content | 6.2 mg |
Country-specific categorizations
| Order reference | LU200PLUSXLECO |
Energy labelling regulation data acc EU 2019/2015
| Light source cap-type (or other electric interface) | E39 |
| Length | 248.01 mm |
| Height | 46.00 mm |
| Width | 46.00 mm |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|

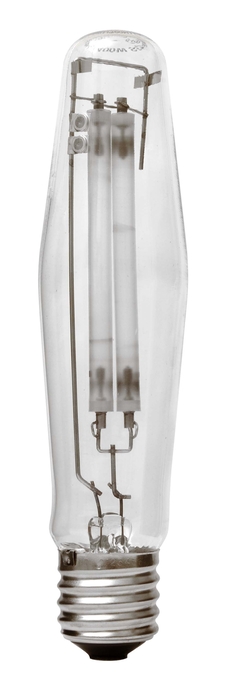

Product image: white background, upright
LUMALUX PLUS XL ECO
LUMALUX PLUS XL ECO
Product image: white background, upright
LUMALUX PLUS XL ECO
LUMALUX PLUS XL ECO
Product image: white background, upright

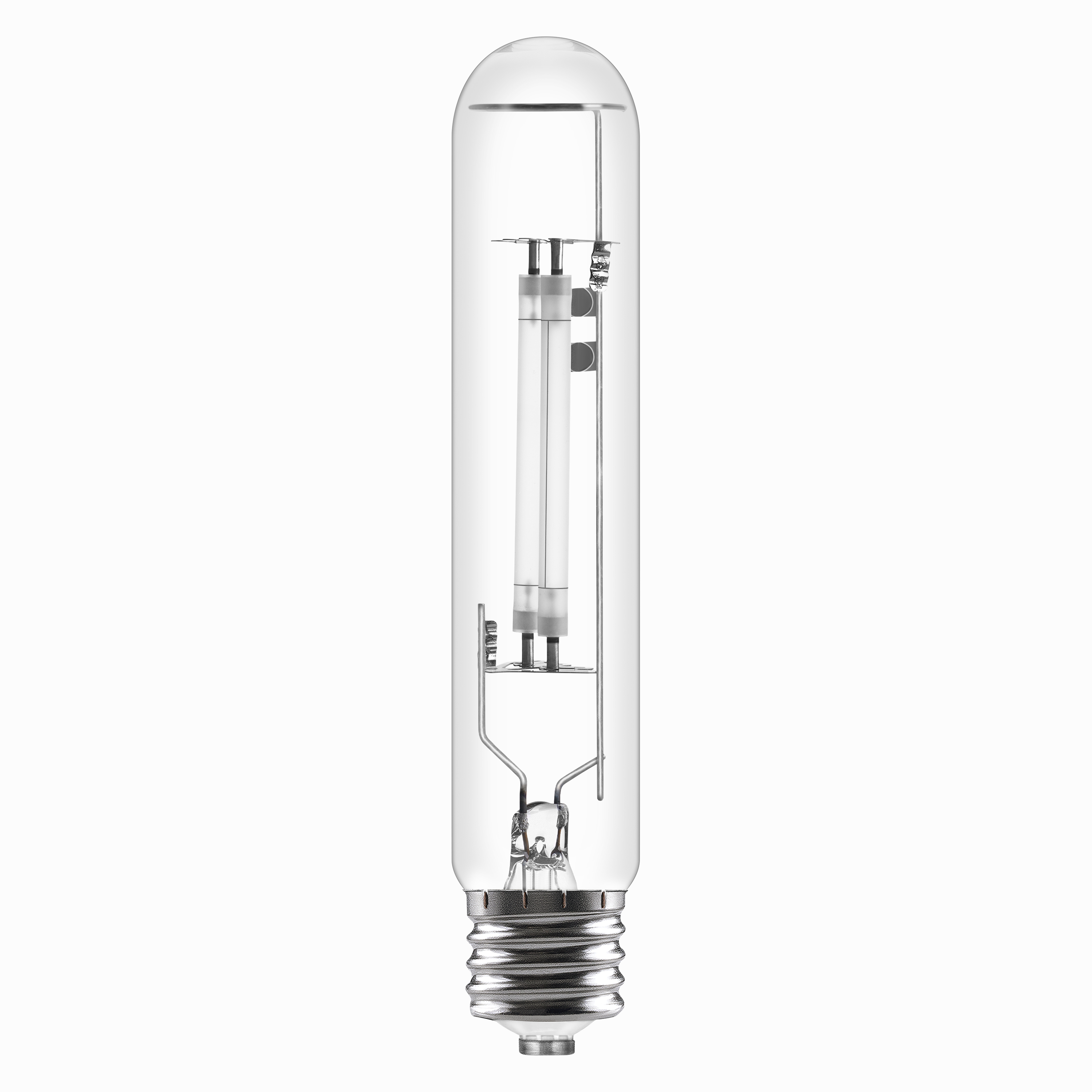

200W High Pressure Sodium lamp OFF
200W High Pressure Sodium lamp OFF
Beauty Shot
LUMALUX PLUS XL ECO
LUMALUX PLUS XL ECO
