PARATHOM DIM LED PIN G9

LED PIN 40 320° DIM P 4W 827 Clear G9

GTIN: 4058075622265 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions
Fast Light Calculation Tool
The fast way to plan lighting projects

PRODUCT DETAILS

Product benefits
  • Good all-around light emission
  • Very long lifetime of up to 25,000 h
  • Ideal for decorative and free-burning applications
  • Five year guarantee
  • Lower energy consumption than incandescent or halogen lamps
Areas of application
  • Atmospheric accent lighting throughout the home
  • Shops, hotels and restaurants
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Dimmable (with many common dimmers, see also www.ledvance.com/dim)
  • LED alternative to high voltage halogen lamps
Safety advice
  • To ensure full light efficiency and product lifetime, it is recommended to detach any glass or cover of the luminaire.
References / Links
Electrical data
Nominal wattage 4 W
Construction wattage 4.00 W
Nominal voltage 220…240 V
Operating mode AC Mains
Claimed equiv. conventional lamp power 40 W
Nominal current 23 mA
Type of current AC
Inrush current 0.13 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 333
Max. lamp number on MCB B16 A 533
Total harmonic distortion < 150 %
Power factor λ > 0.70
Photometrical data
Luminous flux 470 lm
Nominal useful luminous flux 90° 470 lm
Luminous efficacy 117 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra ≥80
Light color 827
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) 1.0
Stroboscope effect metric (SVM) 0.4
Light technical data
Beam angle 320 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s
Dimensions & Weight
Overall length 59.00 mm
Diameter 18.00 mm
Maximum diameter 18 mm
Product weight 11.00 g
Temperatures & operating conditions
Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 87 °C
Lifespan
Lifespan L70/B50 at 25 °C 25000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90
Additional product data
Base (standard designation) G9
Mercury content 0.0 mg
Design / version Clear
Capabilities
Dimmable Yes
Certificates & Standards
Energy efficiency class E 1)
Energy consumption 4.00 kWh/1000h
Type of protection IP20
Standards CE; EAC
Photobiological safety group acc. to EN62778 RG1
1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)
Country-specific categorizations
Order reference LEDPPIN40D CL 4
LOGISTICAL DATA
Temperature range at storage -20…+80 °C
Energy labelling regulation data acc EU 2019/2015
Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) G9
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0.00 W
Claim of equivalent power Yes
Length 59.00 mm
Height 18.00 mm
Width 18.00 mm
Chromaticity coordinate x 0.458
Chromaticity coordinate y 0.410
R9 Colour rendering index 1
Beam angle correspondence SPHERE_360
Survival factor 0.90
Displacement factor 0.5
LED light source replaces a fluorescent light source No
EPREL ID 522882
Model number AC32118
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075622265 Folding box
1		 28 mm x 28 mm x 67 mm 16.00 g 0.05 dm³
4058075622272 Shipping box
20		 150 mm x 122 mm x 77 mm 356.00 g 1.41 dm³
4058075622289 Shipping box
120		 256 mm x 160 mm x 248 mm 2271.00 g 10.16 dm³
Product image: white background, diagonal with OSRAM logo
LED PIN 40 DIM G9 clear
JPG (1.54 MB)
Product image: white background, diagonal
LED PIN 40 DIM G9 clear
JPG (1.55 MB)
Product image: white background, upright, OSRAM logo
LED PIN 40 DIM G9 clear
JPG (1.25 MB)
Product image: white background, upright
LED PIN 40 DIM G9 clear
JPG (1.24 MB)
Product line drawing with letters
LED PIN 40 DIM G9 clear
SVG (8.75 KB)
Product line drawing with numbers
LED PIN 40 DIM G9 clear
SVG (13 KB)
Product line drawing - technical
LED PIN 40 DIM G9 clear
SVG (5.86 KB)

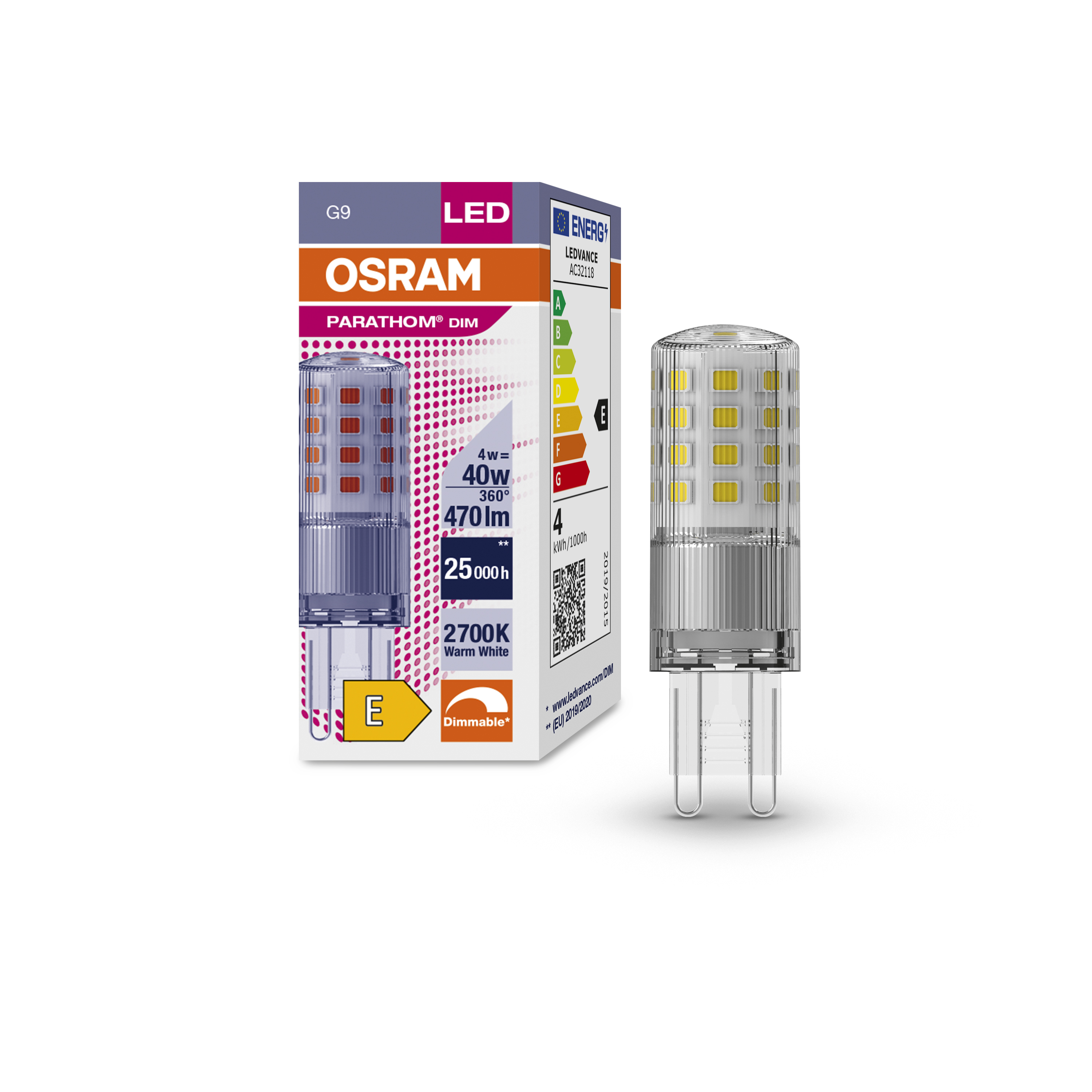

Combo Shot = Product Beauty Shot + Packaging Image
PARA PIN 40 DIM 4W 827 CL G9 MiCh
JPG (1.49 MB)

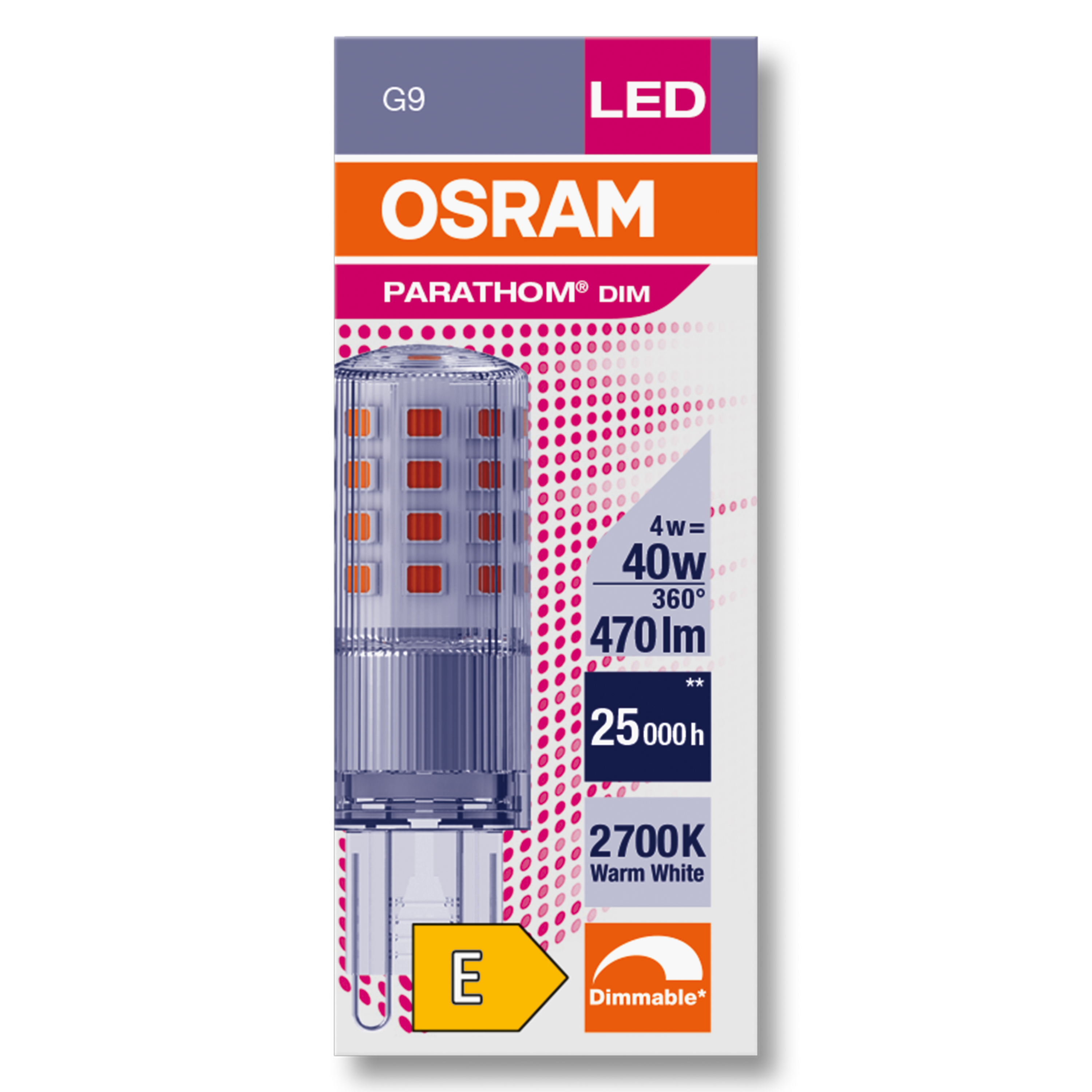

Packaging image, frontal
PARA PIN 40 DIM 4W 827 CL G9 MiCh
JPG (1.7 MB)

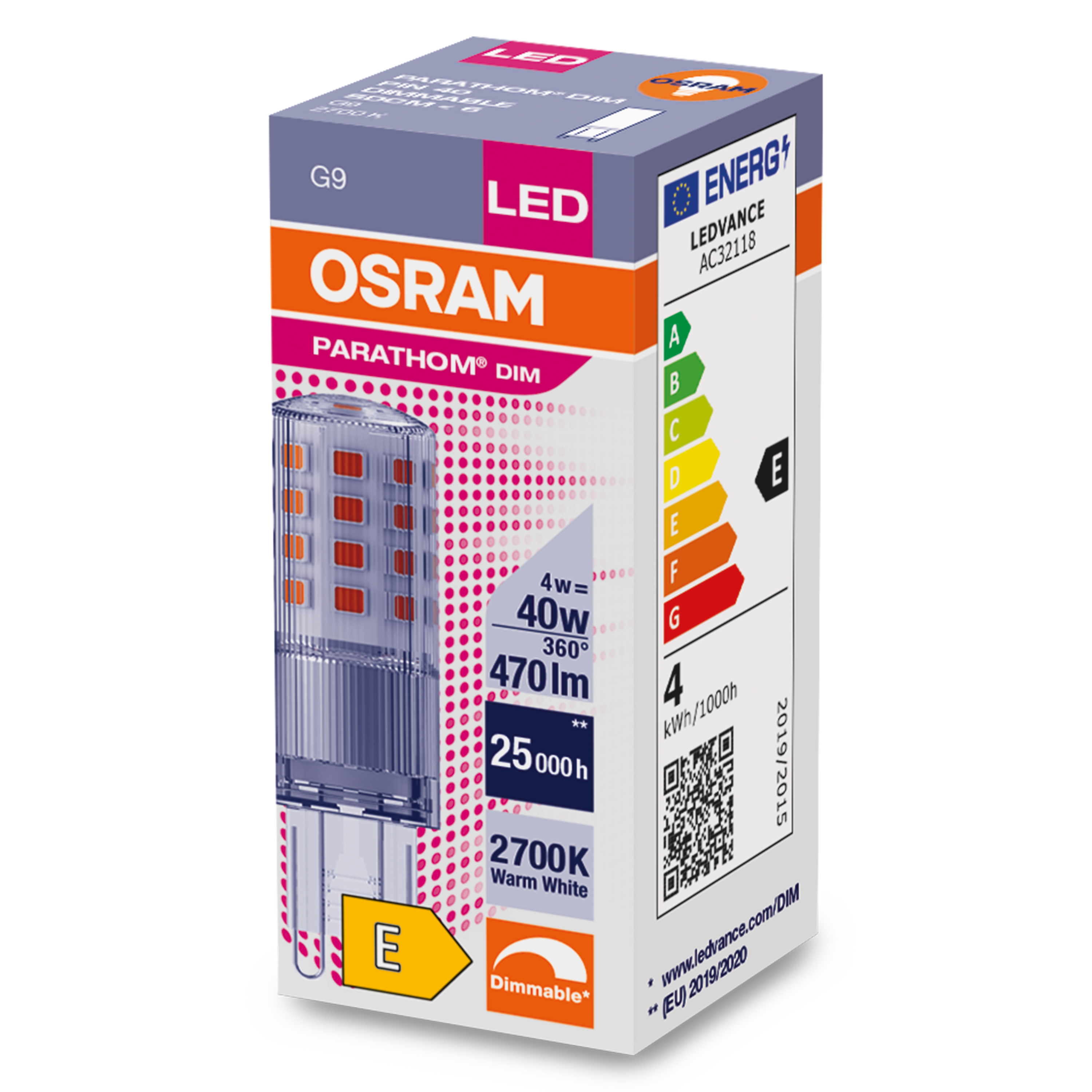

Packaging image, spacial
